Please send RFQ , we will respond immediately.

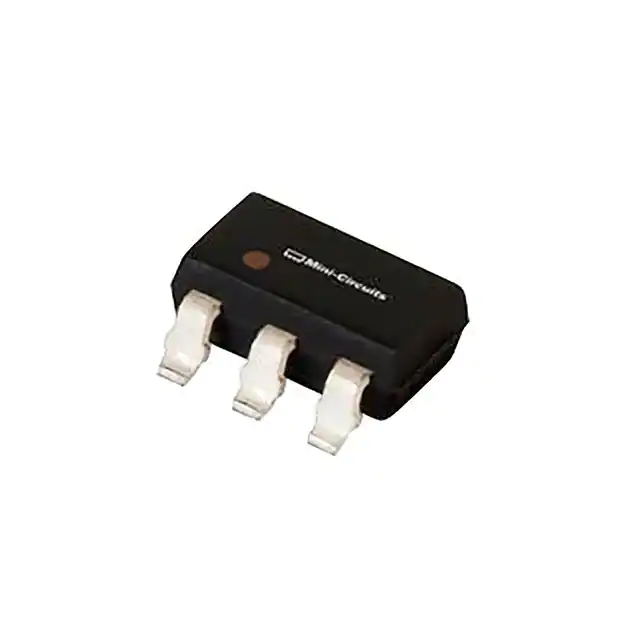

| Part Number | SP-2C+ | SP-2G+ | SP-2C1+ | SP-2L+ | SP-2P+ | SP-2U+ |
|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active |
| Insertion Loss | 0.4dB | 0.4dB | 0.4dB | 0.75dB | 0.4dB | 0.5dB |
| Frequency | 780 MHz ~ 960 MHz | 1.42 GHz ~ 1.66 GHz | 640 MHz ~ 1.1 GHz | 2.7 GHz ~ 4 GHz | 1.71 GHz ~ 1.99 GHz | 2.1 GHz ~ 2.3 GHz |
| Specifications | Isolation (Min) 17dB, 1.2 VSWR (Max), 2° Imbalance (Max) | Isolation (Min) 19dB, 1.25 VSWR (Max), 3° Imbalance (Max) | Isolation (Min) 10dB, 1.25 VSWR (Max), 2° Imbalance (Max) | Isolation (Min) 10dB, 1.5 VSWR (Max), 8° Imbalance (Max) | Isolation (Min) 18dB, 1.23 VSWR (Typ), 3.5° Imbalance (Max) | Isolation (Min) 18dB, 1.25 VSWR (Typ), 3° Imbalance (Max) |
| Size / Dimension | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) | 0.114" L x 0.059" W x 0.064" H (2.90mm x 1.51mm x 1.63mm) |
| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
