Please send RFQ , we will respond immediately.

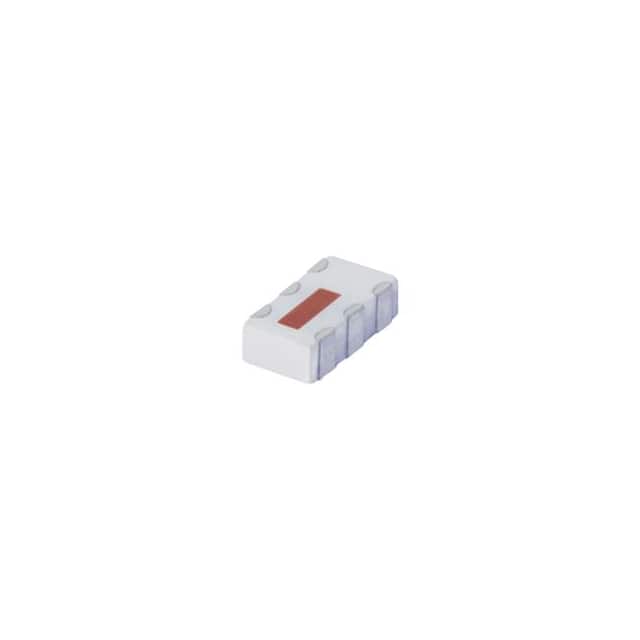

| Part Number | QCN-5+ | QCN-7+ | QCN-8+ | QCN-5D+ | QCN-25+ | QCN-3+ | QCN-45+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Insertion Loss | 0.9dB | 0.6dB | 0.6dB | 0.6dB | 0.6dB | 0.6dB | 0.5dB |
| Frequency | 330 MHz ~ 580 MHz | 425 MHz ~ 675 MHz | 450 MHz ~ 750 MHz | 330 MHz ~ 580 MHz | 1.35 GHz ~ 2.45 GHz | 220 MHz ~ 470 MHz | 2.5 GHz ~ 4.5 GHz |
| Specifications | Isolation (Min) 18dB, 1.5 VSWR (Typ), 6° Imbalance (Max) | Isolation (Min) 13dB, 8° Imbalance (Max) | Isolation (Min) 13dB, 8° Imbalance (Max) | Isolation (Min) 17dB, 5° Imbalance (Max) | Isolation (Min) 20dB, 1.2 VSWR (Typ), 5° Imbalance (Max) | Isolation (Min) 18dB, 1.2 VSWR (Typ), 8° Imbalance (Max) | Isolation (Min) 16dB, 6° Imbalance (Max) |
| Size / Dimension | 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.07mm) | 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.07mm) | 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.07mm) | 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.07mm) | 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.07mm) | 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.07mm) | 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.07mm) |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
