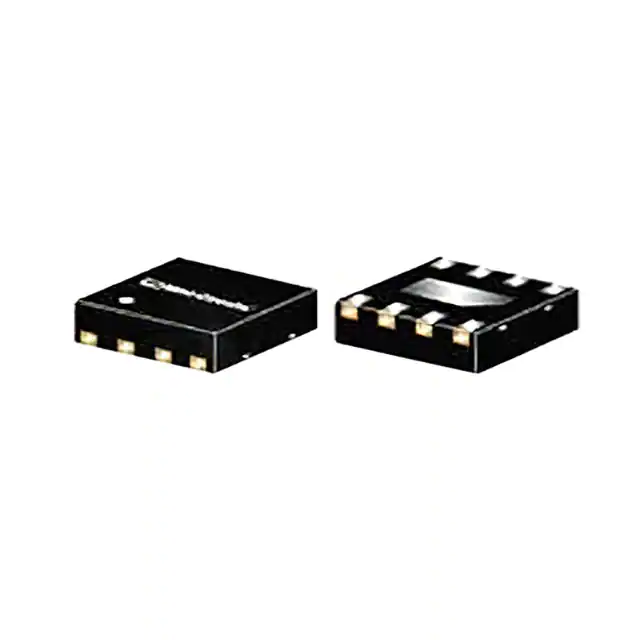

| Part Number | PMA2-153LN+ | PMA2-183LN+ | PMA2-123LN+ | PMA2-133LN+ |
|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active |
| Frequency | 500MHz ~ 15GHz | 4GHz ~ 18GHz | 500MHz ~ 12GHz | 10GHz ~ 13GHz |
| P1dB | 15.3dBm | 16dBm | 15.3dBm | 14.4dBm |
| Gain | 12.5dB | 9.3dB | 15.3dB | 15.8dB |
| Noise Figure | 3.8dB | 2.9dB | 3.1dB | 1.5dB |
| RF Type | LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN | LTE, SatCom, WiMax, WiFi, WLAN | LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN | Radar, VSAT |
| Voltage - Supply | 5V, 6V | 4.75V ~ 5.25V | 5V, 6V | 3V, 5V |
| Current - Supply | 66mA | 48.2mA | 68mA | 29mA |
| Test Frequency | 500MHz | 4GHz | 2GHz | 10.7GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TFDFN Exposed Pad | 8-TFDFN Exposed Pad | 8-TFDFN Exposed Pad | 6-TDFN Exposed Pad |
| Supplier Device Package | MC1631-1 | MC1631-1 | MC1631-1 | - |
