Please send RFQ , we will respond immediately.

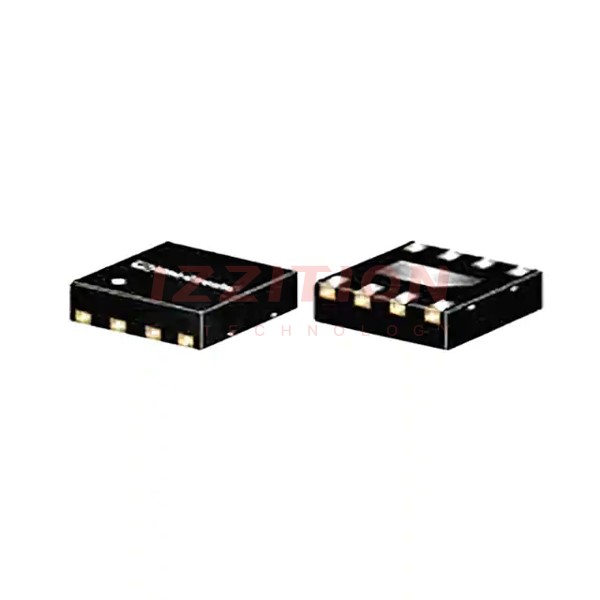

| Part Number | PMA2-123LN+ | PMA2-153LN+ | PMA2-123LN5+ | PMA2-133LN+ | PMA2-183LN+ |
|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active |
| Frequency | 500MHz ~ 12GHz | 500MHz ~ 15GHz | 500MHz ~ 12GHz | 10GHz ~ 13GHz | 4GHz ~ 18GHz |
| P1dB | 15.3dBm | 15.3dBm | 12.3dBm | 14.4dBm | 16dBm |
| Gain | 15.3dB | 12.5dB | 7.6dB | 15.8dB | 9.3dB |
| Noise Figure | 3.1dB | 3.8dB | 2.4dB | 1.5dB | 2.9dB |
| RF Type | LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN | LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN | LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN | Radar, VSAT | LTE, SatCom, WiMax, WiFi, WLAN |
| Voltage - Supply | 5V, 6V | 5V, 6V | 5V | 3V, 5V | 4.75V ~ 5.25V |
| Current - Supply | 68mA | 66mA | 30mA | 29mA | 48.2mA |
| Test Frequency | 2GHz | 500MHz | 500MHz | 10.7GHz | 4GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TFDFN Exposed Pad | 8-TFDFN Exposed Pad | 8-TFDFN Exposed Pad | 6-TDFN Exposed Pad | 8-TFDFN Exposed Pad |
| Supplier Device Package | MC1631-1 | MC1631-1 | MC1631-1 | - | MC1631-1 |
