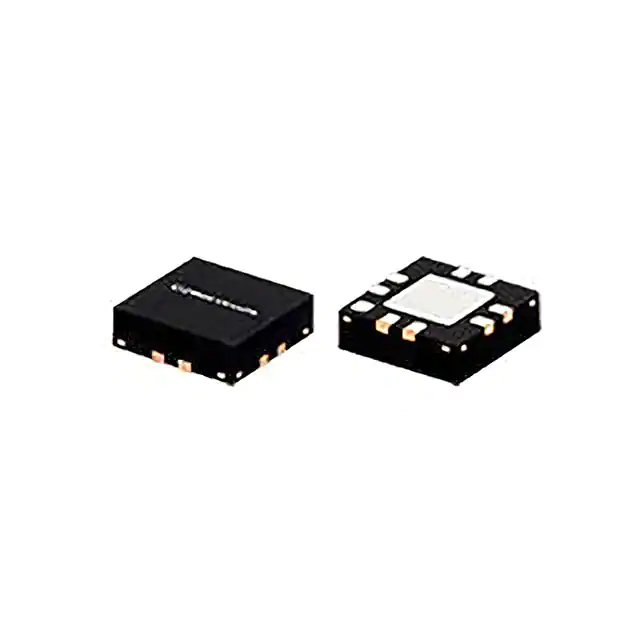

| Part Number | PMA-5455+ | PMA-5456+ | PSA-5455+ | PMA-545+ | PMA-5451+ | PMA-5452+ | PMA-5453+ | PMA-5454+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 50MHz ~ 6GHz | 50MHz ~ 6GHz | 50MHz ~ 4GHz | 50MHz ~ 6GHz | 50MHz ~ 6GHz | 50MHz ~ 6GHz | 50MHz ~ 6GHz | 50MHz ~ 6GHz |
| P1dB | 19.9dBm | 22.1dBm | 19.2dBm | 21.2dBm | 17.4dBm | 18.9dBm | 20dBm | 16dBm |
| Gain | 5.6dB | 5.8dB | 10dB | 5.5dB | 5.3dB | 5.5dB | 5.7dB | 5.2dB |
| Noise Figure | 2.4dB | 2.4dB | 1.6dB | 2.4dB | 2.3dB | 2.1dB | 2.2dB | 2.5dB |
| RF Type | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN |
| Voltage - Supply | 5V | 5V | 5V | 3V | 3V | 3V | 3V | 5V |
| Current - Supply | 40mA | 60mA | 40mA | 80mA | 30mA | 40mA | 60mA | 20mA |
| Test Frequency | 5GHz | 6GHz | 1GHz | 6GHz | 5GHz | 6GHz | 6GHz | 5GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 6-VSSOP, SC-88, SOT-363 | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad |
| Supplier Device Package | 8-QFN (3x3) | 8-QFN (3x3) | SC-70-6 | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) |
