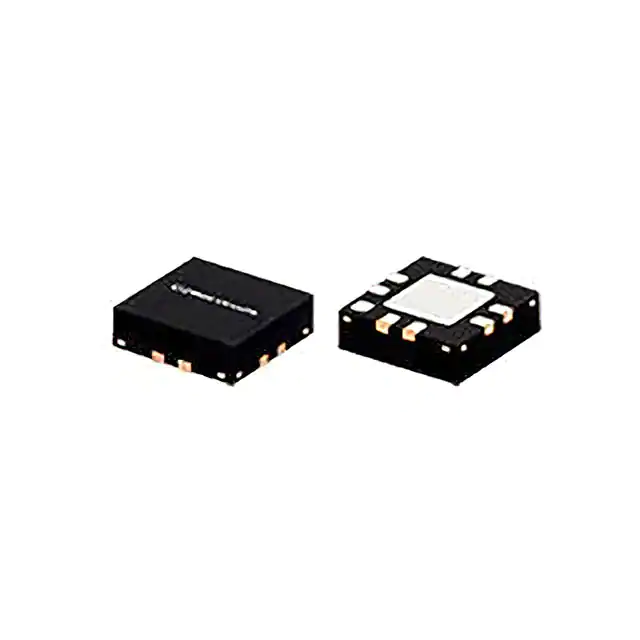

| Part Number | MNA-5A+ | MNA-6A+ | MNA-7A+ | MNA-5W+ | MNA-2A+ | MNA-3A+ | MNA-4A+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 500MHz ~ 2.5GHz | 500MHz ~ 2.5GHz | 1.5GHz ~ 6GHz | 500MHz ~ 4.5GHz | 500MHz ~ 2.5GHz | 500MHz ~ 2.5GHz | 500MHz ~ 2.5GHz |
| P1dB | 12.6dBm | 20.3dBm | 17.4dBm | 12.6dBm | 19.3dBm | 11.6dBm | 18.8dBm |
| Gain | 19.2dB | 23.2dB | 11.7dB | 12.8dB | 14.7dB | 15.5dB | 17dB |
| Noise Figure | 3.2dB | 2.7dB | 4.7dB | 4.3dB | 5.4dB | 4.1dB | 4.5dB |
| RF Type | Cellular, PCN | Cellular, PCN | Cellular, PCN | Cellular | Cellular | Cellular | Cellular |
| Voltage - Supply | 2.8V ~ 5V | 2.8V ~ 5V | 2.8V ~ 5V | 2.8V ~ 5V | 2.8V ~ 5V | 2.8V ~ 5V | 2.8V ~ 5V |
| Current - Supply | 34mA | 99mA | 103mA | 34mA | 84mA | 34.3mA | 75mA |
| Test Frequency | 500MHz | 500MHz ~ 750MHz | 1.5GHz | 500MHz | 750MHz | 500MHz ~ 750MHz | 750MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad |
| Supplier Device Package | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) |
