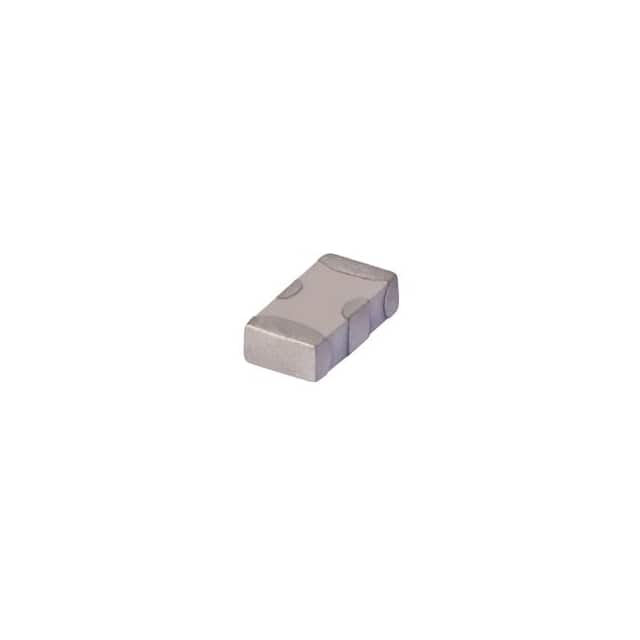

| Part Number | LFCN-800+ | LFCN-900+ | LFCN-8400+ | LFCN-800D+ | LFCG-800+ | LFCN-1800+ | LFCN-3800+ | LFCN-400+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 990MHz | 1.075GHz | 9.1GHz | 990MHz Cut Off | 900MHz (Cutoff) | 2.125GHz | 4.85GHz | 560MHz |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | - | - | - | - | - | - | - | - |
| Insertion Loss | 1.3dB | 1.3dB | 1.6dB | 1.3dB | 2.1dB | 1dB | 1.5dB | 1dB |
| Filter Type | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 1206 (3216 Metric), 4 PC Pad | 4-SMD, No Lead | 0805 (2012 Metric), 8 PC Pad | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.042" (1.07mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) |
