Please send RFQ , we will respond immediately.

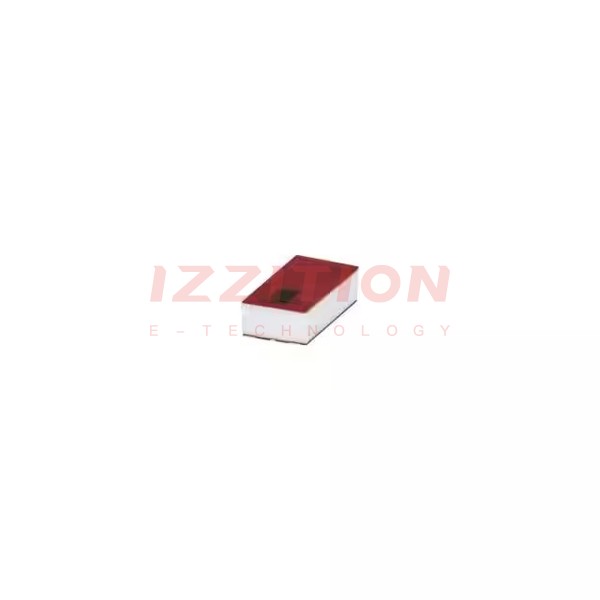

| Part Number | LFCN-2752+ | LFCN-2852+ | LFCN-2952+ | LFCN-2352+ | LFCN-2750+ |
|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active |
| Frequency | 29.5GHz (Cutoff) | 30.3GHz (Cutoff) | 31GHz (Cutoff) | 25GHz (Cutoff) | 3.15GHz |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | - | - | - | - | - |
| Insertion Loss | 1.8dB | 2.8dB | 2.1dB | 1.6dB | 1dB |
| Filter Type | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.036" (0.91mm) | 0.036" (0.91mm) | 0.036" (0.91mm) | 0.036" (0.91mm) | 0.037" (0.94mm) |
