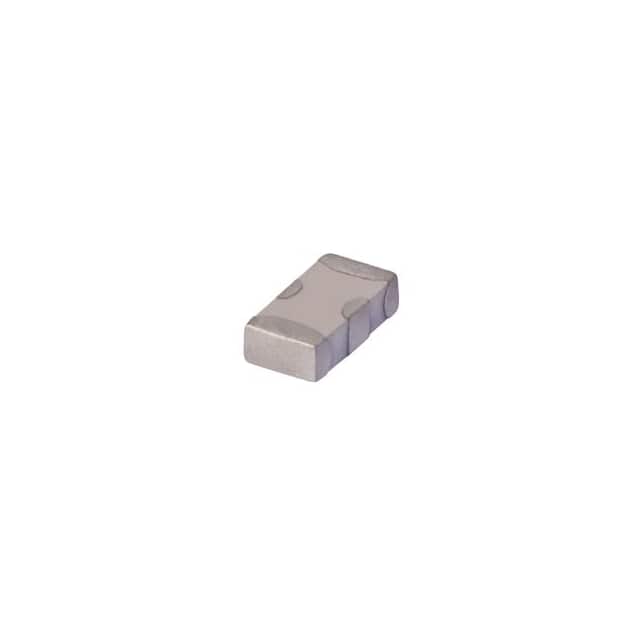

| Part Number | LFCN-1500D+ | LFCN-1800D+ | LFCN-2500D+ | LFCN-1700D+ | LFCN-5500D+ | LFCN-1000D+ | LFCN-1200D+ | LFCN-1400D+ | LFCN-1500+ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 1.825GHz Cut Off | 2.125GHz | 2.95GHz | 2.05GHz Cut Off | 6.2GHz Cut Off | 1.3GHz | 1.53GHz | 1.7GHz | 1.825GHz |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | - | - | - | - | - | - | - | - | - |
| Insertion Loss | 1dB | 1dB | 1.2dB | 1dB | 2dB | 1dB | 1dB | 1dB | 1dB |
| Filter Type | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) |
