Please send RFQ , we will respond immediately.

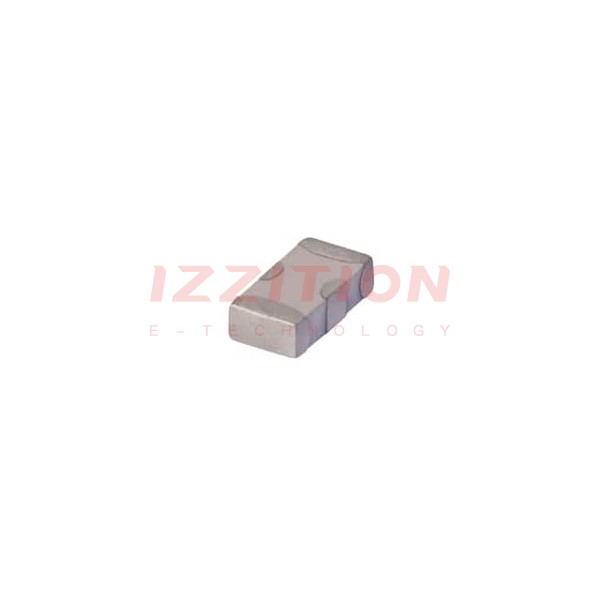

| Part Number | LFCN-1400D+ | LFCN-1800D+ | LFCN-400D+ | LFCN-4400D+ | LFCN-1700D+ | LFCN-3400D+ | LFCN-6400D+ | LFCN-2400D+ | LFCN-1500D+ | LFCN-1000D+ | LFCN-1200D+ | LFCN-1400+ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 1.7GHz | 2.125GHz | 560MHz | 5.29GHz | 2.05GHz Cut Off | 3.95GHz Cut Off | 7.2GHz Cut Off | 2.8GHz Cut Off | 1.825GHz Cut Off | 1.3GHz | 1.53GHz | 1.7GHz |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | - | - | - | - | - | - | - | - | - | - | - | - |
| Insertion Loss | 1dB | 1dB | 1dB | 1dB | 1dB | 1.5dB | 2dB | 1.5dB | 1dB | 1dB | 1dB | 1dB |
| Filter Type | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) |
