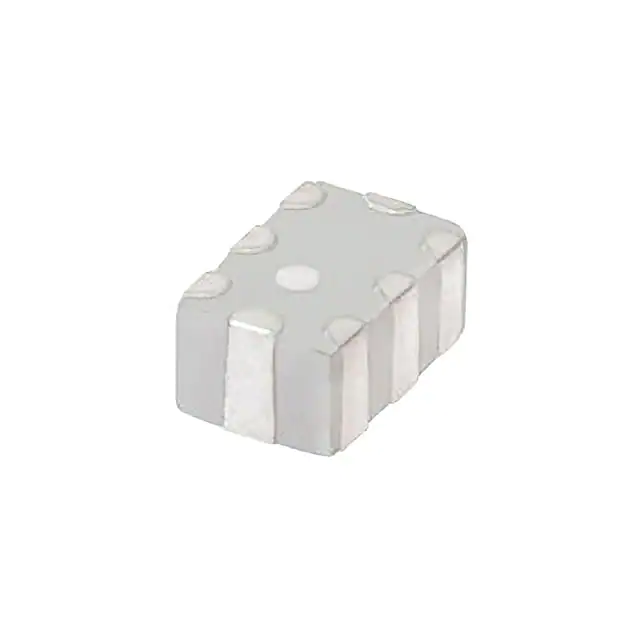

| Part Number | LFCG-1400+ | LFCG-1700+ | LFCN-1400+ | LFCG-3400+ | LFCG-400+ | LFCG-1800+ | LFCG-1000+ | LFCG-1200+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 1.65GHz | 2.025GHz | 1.7GHz | 3.8GHz (Cutoff) | 520MHz | 2.03GHz | 1.37GHz | 1.47GHz |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | - | - | - | - | - | - | - | - |
| Insertion Loss | 1.9dB | 1.8dB | 1dB | 2.1dB | 1.8dB | 2.2dB | 1.8dB | 1.8dB |
| Filter Type | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass | Low Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), 8 PC Pad | 0805 (2012 Metric), 8 PC Pad | 4-SMD, No Lead | 0805 (2012 Metric), 8 PC Pad | 0805 (2012 Metric), 8 PC Pad | 0805 (2012 Metric), 8 PC Pad | 0805 (2012 Metric), 8 PC Pad | 0805 (2012 Metric), 8 PC Pad |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.94mm) | 0.042" (1.07mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
