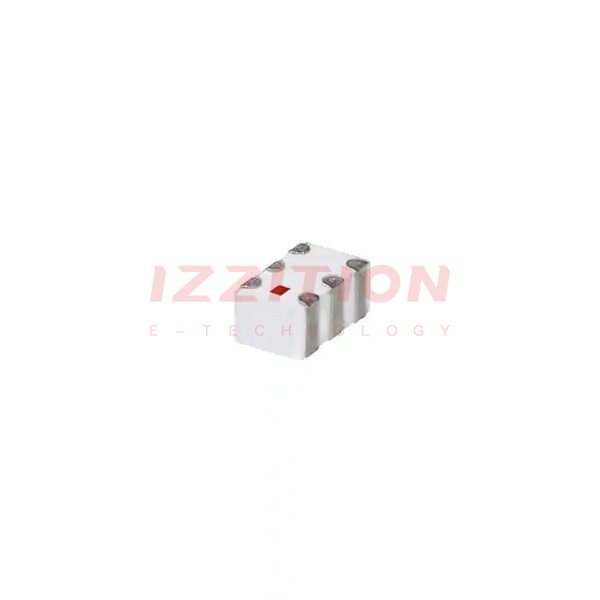

| Part Number | HFCW-7500+ | HFCW-9500+ | HFCW-5500+ | HFCW-7000+ |
|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active |
| Frequency | 7.6GHz (Cutoff) | 9.65GHz (Cutoff) | 5.5GHz (Cutoff) | 7GHz (Cutoff) |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | 12.8 GHz | 9.5 GHz | 13.9 GHz | 12.4 GHz |
| Insertion Loss | 1.5dB | 1.6dB | 1.5dB | 1.8dB |
| Filter Type | High Pass | High Pass | High Pass | High Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric), 6 PC Pad | 0603 (1608 Metric), 6 PC Pad | 0603 (1608 Metric), 6 PC Pad | 0603 (1608 Metric), 6 PC Pad |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height (Max) | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.60mm) | 0.024" (0.61mm) |
