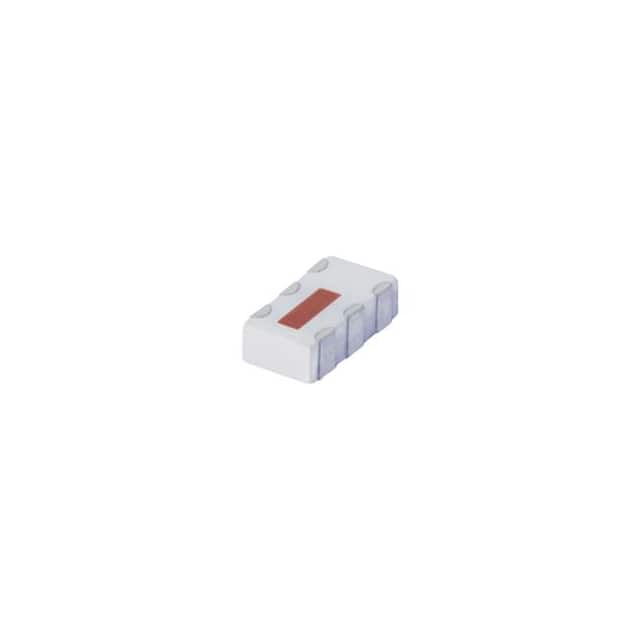

| Part Number | HFCN-5500+ | HFCW-5500+ | HFCN-5500D+ | HFCN-1500+ | HFCN-3500+ |
|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active |
| Frequency | 8.75GHz Center | 5.5GHz (Cutoff) | 8.75GHz Center | 3.55GHz Center | 6.85GHz Center |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | 5.5 GHz | 13.9 GHz | 5.5 GHz | 3.9 GHz | 5.9 GHz |
| Insertion Loss | - | 1.5dB | - | - | - |
| Filter Type | High Pass | High Pass | High Pass | High Pass | High Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 0603 (1608 Metric), 6 PC Pad | 6-SMD, No Lead | 4-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.042" (1.07mm) | 0.024" (0.60mm) | 0.042" (1.07mm) | 0.037" (0.94mm) | 0.042" (1.07mm) |
