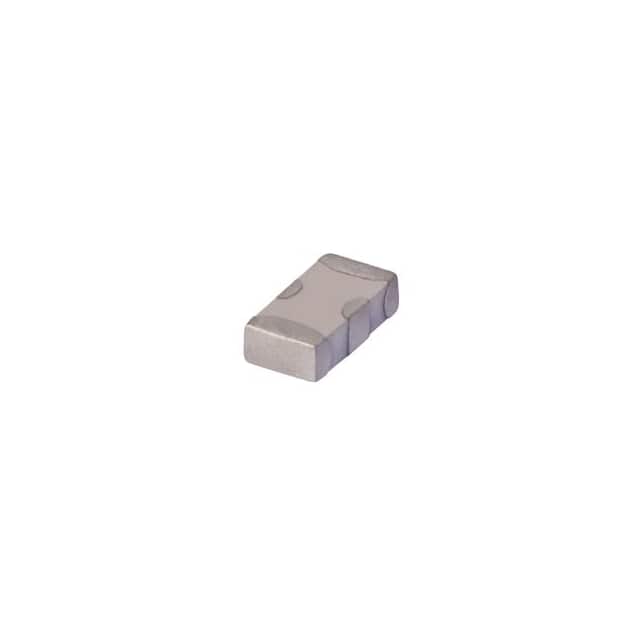

| Part Number | HFCN-2000+ | HFCN-2700+ | HFCN-2100+ | HFCG-2000+ | HFCN-1000+ |
|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active |
| Frequency | 4.255GHz Center | 4.575GHz Center | 4.1GHz Center | 1.93GHz (Cutoff) | 2.54GHz Center |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | 3.99 GHz | 3.85 GHz | 3.8 GHz | 7.9 GHz | 2.92 GHz |
| Insertion Loss | - | - | - | 1.8dB | 2dB |
| Filter Type | High Pass | High Pass | High Pass | High Pass | High Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 0805 (2012 Metric), 6 PC Pad | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.046" (1.18mm) | 0.037" (0.94mm) |
