Please send RFQ , we will respond immediately.

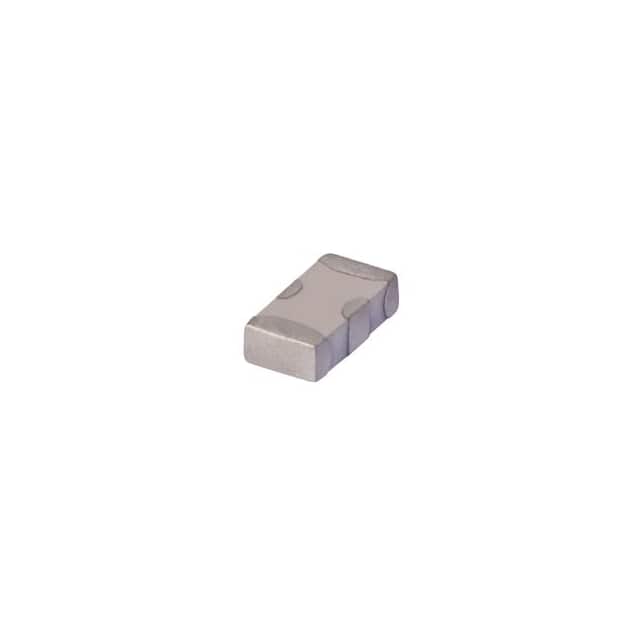

| Part Number | HFCN-1500D+ | HFCN-5500D+ | HFCN-3500D+ | HFCN-1600D+ | HFCN-1200D+ | HFCN-1300D+ | HFCN-1500+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 3.55GHz Center | 8.75GHz Center | 6.85GHz Center | 3.325GHz Center | 2.91GHz Center | 3.2GHz Center | 3.55GHz Center |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | 3.9 GHz | 5.5 GHz | 5.9 GHz | 3.35 GHz | 3.38 GHz | 3.6 GHz | 3.9 GHz |
| Insertion Loss | - | - | - | - | - | - | - |
| Filter Type | High Pass | High Pass | High Pass | High Pass | High Pass | High Pass | High Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.037" (0.94mm) | 0.042" (1.07mm) | 0.042" (1.07mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) |
