Please send RFQ , we will respond immediately.

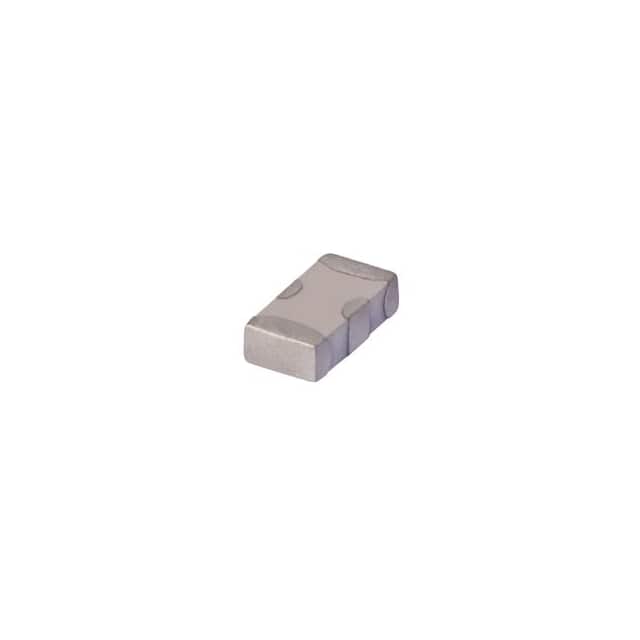

| Part Number | HFCN-1500+ | HFCN-3500+ | HFCN-1600+ | HFCN-5500+ | HFCN-1500D+ | HFCG-1500+ | HFCN-1000+ | HFCN-1100+ | HFCN-1200+ | HFCN-1300+ |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 3.55GHz Center | 6.85GHz Center | 3.325GHz Center | 8.75GHz Center | 3.55GHz Center | 3.8GHz Center | 2.54GHz Center | 2.7GHz Center | 2.91GHz Center | 3.2GHz Center |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | 3.9 GHz | 5.9 GHz | 3.35 GHz | 5.5 GHz | 3.9 GHz | 4.4 GHz | 2.92 GHz | 2.4 GHz | 3.38 GHz | 3.6 GHz |
| Insertion Loss | - | - | - | - | - | 1.7dB | 2dB | 2dB | - | - |
| Filter Type | High Pass | High Pass | High Pass | High Pass | High Pass | High Pass | High Pass | High Pass | High Pass | High Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 6-SMD, No Lead | 4-SMD, No Lead | 6-SMD, No Lead | 4-SMD, No Lead | 0805 (2012 Metric), 6 PC Pad | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.24mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height (Max) | 0.037" (0.94mm) | 0.042" (1.07mm) | 0.037" (0.94mm) | 0.042" (1.07mm) | 0.037" (0.94mm) | 0.042" (1.07mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) | 0.037" (0.94mm) |
