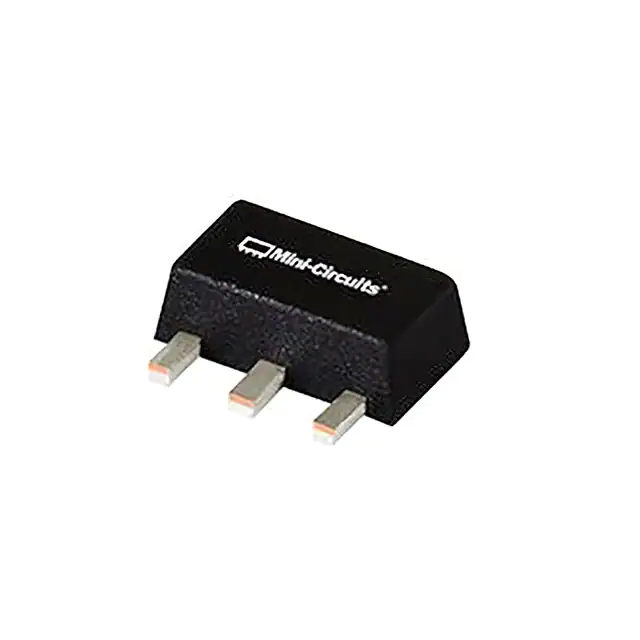

| Part Number | GVA-83+ | GVA-84+ | GVA-93+ | GVA-63+ | GVA-81+ | GVA-82+ |
|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active |
| Frequency | 0Hz ~ 7GHz | 0Hz ~ 7GHz | 10MHz ~ 9GHz | 10MHz ~ 6GHz | 0Hz ~ 6GHz | 0Hz ~ 7GHz |
| P1dB | 18.6dBm | 22.3dBm | 16.3dBm | 15.9dBm | 20dBm | 20.6dBm |
| Gain | 11.2dB | 10.5dB | 15.2dB | 15.9dB | 8.1dB | 9.9dB |
| Noise Figure | 7.5dB | 6.8dB | 5.3dB | 4.6dB | 8.3dB | 8.2dB |
| RF Type | CATV, DBS, LTE, MMDS, Wireless LAN | CATV, DBS, LTE, MMDS, Wireless LAN | LTE, MMDS, Wireless LAN | CATV, DBS, LTE, MMDS, Wireless LAN | CATV, DBS, LTE, MMDS, Wireless LAN | CATV, DBS, LTE, MMDS, Wireless LAN |
| Voltage - Supply | 4.8V ~ 5.2V | 4.8V ~ 5.2V | 4.8V ~ 5.2V | 4.8V ~ 5.2V | 4.8V ~ 5.2V | 4.8V ~ 5.2V |
| Current - Supply | 72mA | 108mA | 52mA | 69mA | 103mA | 106mA |
| Test Frequency | 2GHz | 1GHz ~ 2GHz | 850MHz | 800MHz | 3GHz | 2GHz ~ 3GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89 | SOT-89 | SOT-89 | SOT-89 | SOT-89 | SOT-89 |
