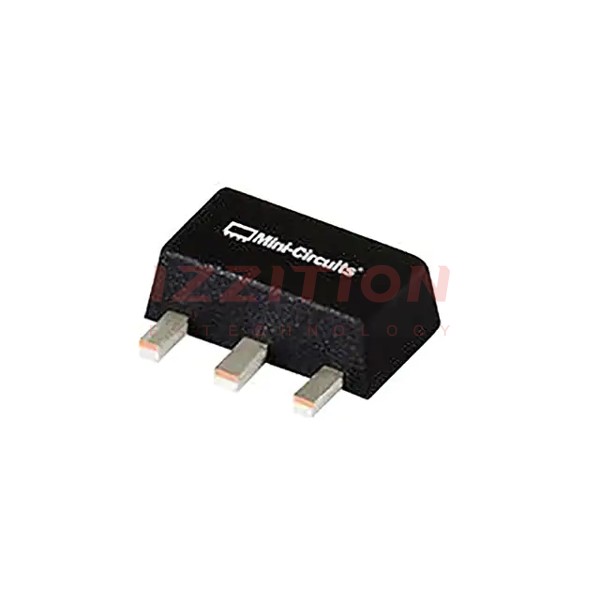

| Part Number | GALI-84+ | GALI-24+ | GALI-4+ | GALI-74+ |
|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active |
| Frequency | 0Hz ~ 6GHz | 0Hz ~ 6GHz | 0Hz ~ 4GHz | 0Hz ~ 1GHz |
| P1dB | 21.9dBm | 19.4dBm | 17.5dBm | 19.2dBm |
| Gain | 11.8dB | 12.4dB | 13.1dB | 13.4dB |
| Noise Figure | 5.3dB | 5.3dB | 4dB | 2.7dB |
| RF Type | CATV, DBS, MMDS, Wireless LAN | CATV, DBS, MMDS, Wireless LAN | Cellular, PCS | Cellular |
| Voltage - Supply | 5.4V ~ 6.2V | 5.4V ~ 6.2V | 4.2V ~ 5.5V | 4.3V ~ 5.3V |
| Current - Supply | 100mA | 80mA | 65mA | 80mA |
| Test Frequency | 100MHz | 2GHz | 1GHz | 100MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89 | SOT-89 | SOT-89 | SOT-89 |
