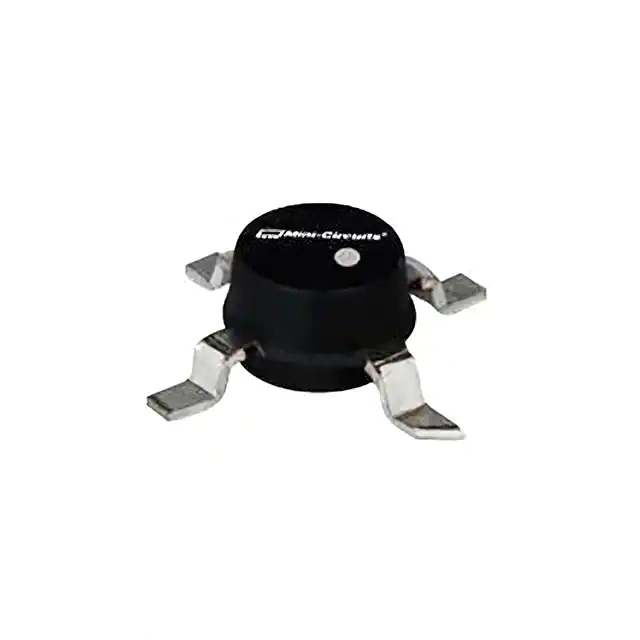

| Part Number | ERA-5SM+ | ERA-9SM+ | ERA-6SM+ | ERA-8SM+ | ERA-1SM+ | ERA-2SM+ | ERA-3SM+ | ERA-4SM+ | ERA-50SM+ | ERA-51SM+ |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Frequency | 0Hz ~ 4GHz | 0Hz ~ 8GHz | 0Hz ~ 4GHz | 0Hz ~ 2GHz | 0Hz ~ 8GHz | 0Hz ~ 6GHz | 0Hz ~ 3GHz | 0Hz ~ 4GHz | 0Hz ~ 2GHz | 0Hz ~ 4GHz |
| P1dB | 18.4dBm | 14.3dBm | 17.2dBm | 12.5dBm | 12dBm | 13.1dBm | 12.5dBm | 17.5dBm | 17.6dBm | 18.3dBm |
| Gain | 16dB | 6.9dB | 10.8dB | 12dB | 8.2dB | 10.7dB | 18.5dB | 12.2dB | 19dB | 14.5dB |
| Noise Figure | 3.5dB | 5.4dB | 4.7dB | 3dB | 5.5dB | 3.4dB | 2.9dB | 4.5dB | 3.4dB | 4dB |
| RF Type | CATV, Cellular, DBS, PCS, WLAN | Cellular, PCS | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN |
| Voltage - Supply | 4.5V ~ 5.3V | 3.6V ~ 4.4V | 4.7V ~ 5.3V | 3.5V ~ 3.9V | 3.2V ~ 3.6V | 3.2V ~ 3.6V | 3V ~ 3.4V | 4.3V ~ 4.9V | 4.2V ~ 4.6V | 4.2V ~ 4.8V |
| Current - Supply | 65mA | 50mA | 70mA | 36mA | 40mA | 40mA | 35mA | 65mA | 60mA | 65mA |
| Test Frequency | 1GHz | 100MHz | 1GHz | 100MHz ~ 1GHz | 100MHz ~ 4GHz | 100MHz | 100MHz, 2GHz | 100MHz | 100MHz | 100MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - |
