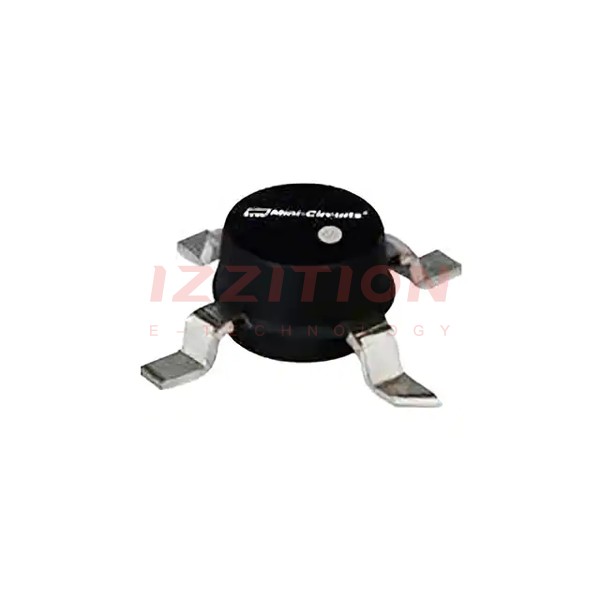

| Part Number | ERA-50SM+ | ERA-5SM+ | ERA-51SM+ |
|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active |
| Frequency | 0Hz ~ 2GHz | 0Hz ~ 4GHz | 0Hz ~ 4GHz |
| P1dB | 17.6dBm | 18.4dBm | 18.3dBm |
| Gain | 19dB | 16dB | 14.5dB |
| Noise Figure | 3.4dB | 3.5dB | 4dB |
| RF Type | Cellular, CATV, DBS, PCS, WLAN | CATV, Cellular, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN |
| Voltage - Supply | 4.2V ~ 4.6V | 4.5V ~ 5.3V | 4.2V ~ 4.8V |
| Current - Supply | 60mA | 65mA | 65mA |
| Test Frequency | 100MHz | 1GHz | 100MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing |
| Supplier Device Package | - | - | - |
