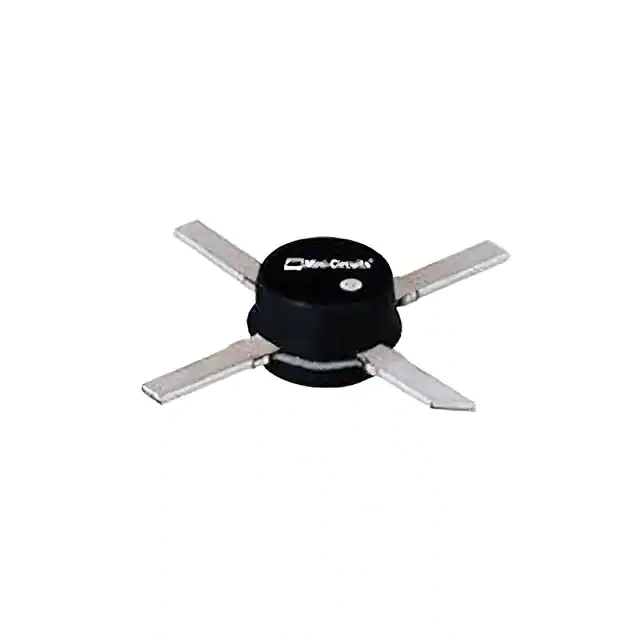

| Part Number | ERA-3+ | ERA-5+ | ERA-4+ | ERA-6+ | ERA-1+ | ERA-2+ |
|---|---|---|---|---|---|---|
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| Product Status | Active | Active | Active | Active | Active | Active |
| Frequency | 0Hz ~ 3GHz | 0Hz ~ 4GHz | 0Hz ~ 4GHz | 0Hz ~ 4GHz | 0Hz ~ 8GHz | 0Hz ~ 6GHz |
| P1dB | 12.5dBm | 18.4dBm | 17.5dBm | 17.2dBm | 12dBm | 13.1dBm |
| Gain | 18.5dB | 14.3dB | 12.1dB | 10.8dB | 8.2dB | 10.7dB |
| Noise Figure | 2.9dB | 3.5dB | 4.5dB | 4.5dB | 5.5dB | 3.4dB |
| RF Type | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN | Cellular, CATV, DBS, PCS, WLAN |
| Voltage - Supply | 3V ~ 3.4V | 4.5V ~ 5.3V | 4.3V ~ 4.9V | 4.7V ~ 5.3V | 3.2V ~ 3.6V | 3.2V ~ 3.6V |
| Current - Supply | 35mA | 65mA | 65mA | 70mA | 40mA | 40mA |
| Test Frequency | 2GHz | 100MHz ~ 1GHz | 100MHz | 1GHz | 100MHz ~ 4GHz | 100MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads |
| Supplier Device Package | - | - | - | - | - | - |
