BPF-A535+
  • Share:

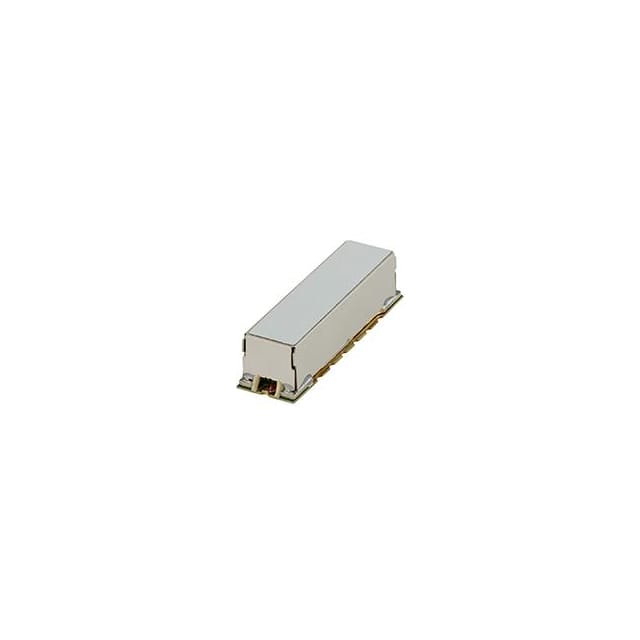

Mini-Circuits BPF-A535+

Manufacturer No:
BPF-A535+
Manufacturer:
Mini-Circuits
Package:
Tape & Reel (TR)
Datasheet:
BPF-A535+ Datasheet
ECAD Model:
-
Description:
RF FILTER BAND PASS 535MHZ 14SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency:535MHz Center
Bandwidth:150MHz
Filter Type:Band Pass
Ripple:-
Insertion Loss:2dB
Mounting Type:Surface Mount
Package / Case:14-SMD Module
Size / Dimension:1.360" L x 0.365" W (34.54mm x 9.27mm)
Height (Max):0.350" (8.89mm)
0 Remaining View Similar

In Stock

$39.96
17

Please send RFQ , we will respond immediately.
