Microsemi Corporation-UFT7150 - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	500 V
Current - Average Rectified (Io) (per Diode):	35A
Voltage - Forward (Vf) (Max) @ If:	1.2 V @ 35 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	60 ns
Current - Reverse Leakage @ Vr:	25 µA @ 500 V
Operating Temperature - Junction:	-
Mounting Type:	Screw Mount
Package / Case:	Module
Supplier Device Package:	Module

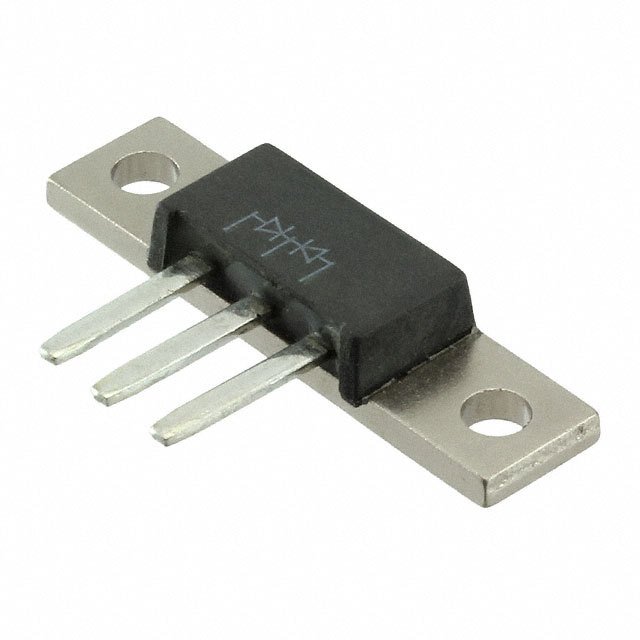

Microsemi Corporation UFT7150
