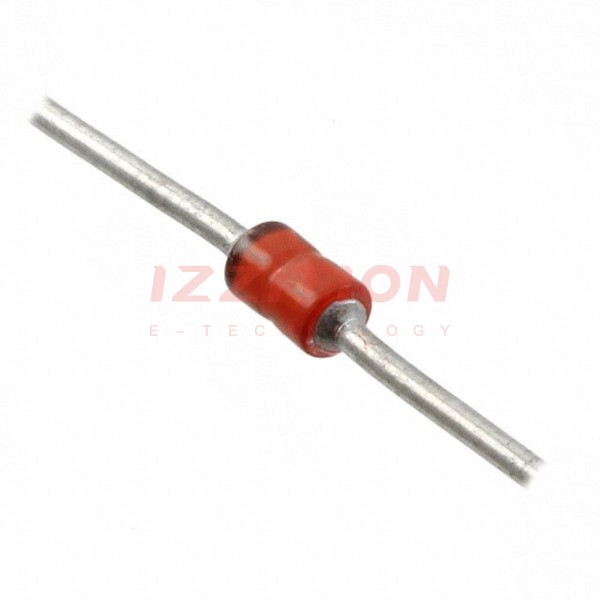

| Part Number | MXP5KE6.5CA | MXP5KE7.5CA | MXP5KE8.5CA | MXP5KE6.0CA | MXP5KE6.5A |
|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 6.5V | 7.5V | 8.5V | 6V | 6.5V |
| Voltage - Breakdown (Min) | 7.22V | 8.33V | 9.44V | 6.67V | 7.22V |
| Voltage - Clamping (Max) @ Ipp | 11.2V | 12.9V | 14.4V | 10.3V | 11.2V |
| Current - Peak Pulse (10/1000µs) | 44.7A | 38.8A | 34.7A | 48.5A | 44.7A |
| Power - Peak Pulse | 500W | 500W | 500W | 500W | 500W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) | DO-204AL (DO-41) | DO-204AL (DO-41) | DO-204AL (DO-41) | DO-204AL (DO-41) |
