Please send RFQ , we will respond immediately.

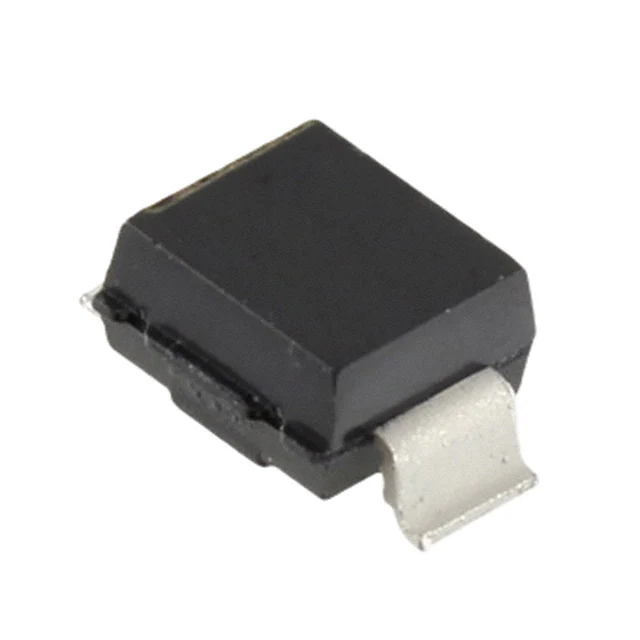

| Part Number | MSMBG2K5.0 | MSMBG2K3.0 | MSMBG2K4.0 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5V | 3V | 4V |
| Voltage - Breakdown (Min) | 5.9V | 4.3V | 5V |
| Voltage - Clamping (Max) @ Ipp | 7.6V | 5.4V | 6.3V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) | 10A (8/20µs) | 10A (8/20µs) |
| Power - Peak Pulse | 2000W (2kW) | 2000W (2kW) | 2000W (2kW) |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing | DO-215AA, SMB Gull Wing | DO-215AA, SMB Gull Wing |
| Supplier Device Package | SMBG (DO-215AA) | SMBG (DO-215AA) | SMBG (DO-215AA) |
