Please send RFQ , we will respond immediately.

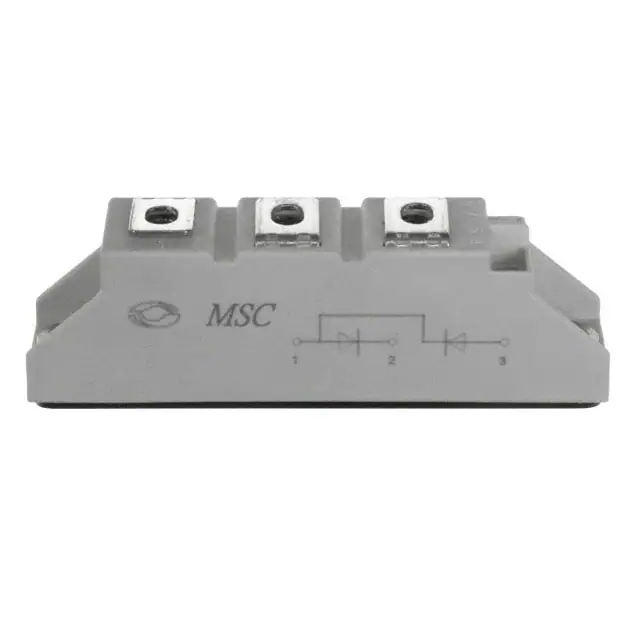

| Part Number | MSKD36-16 | MSCD36-16 | MSKD36-12 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Series Connection | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1600 V | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 36A | 36A | 36A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 100 A | 1.25 V @ 100 A | 1.25 V @ 100 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 5 mA @ 1600 V | 5 mA @ 1600 V | 5 mA @ 1200 V |
| Operating Temperature - Junction | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | D1 | D1 | D1 |
| Supplier Device Package | D1 | D1 | D1 |
