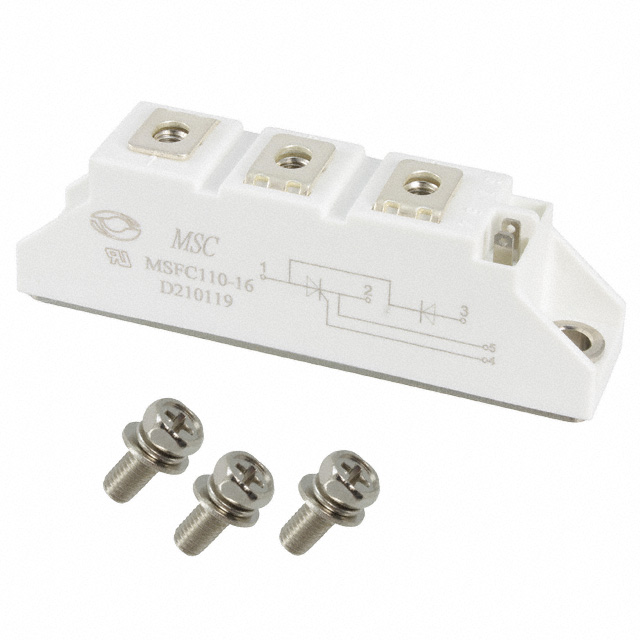

| Part Number | MSFC110-16 | MSFC160-16 | MSTC110-16 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - All SCRs |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 110 A | 160 A | 110 A |
| Current - On State (It (RMS)) (Max) | - | - | - |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V | 3 V | 3 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2250A @ 50Hz | 5400A @ 50Hz | 2250A @ 50Hz |
| Current - Hold (Ih) (Max) | 250 mA | 400 mA | 250 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 130°C (TJ) |
| Mounting Type | Screw Mount | Screw Mount | Screw Mount |
| Package / Case | Module | Module | Module |
