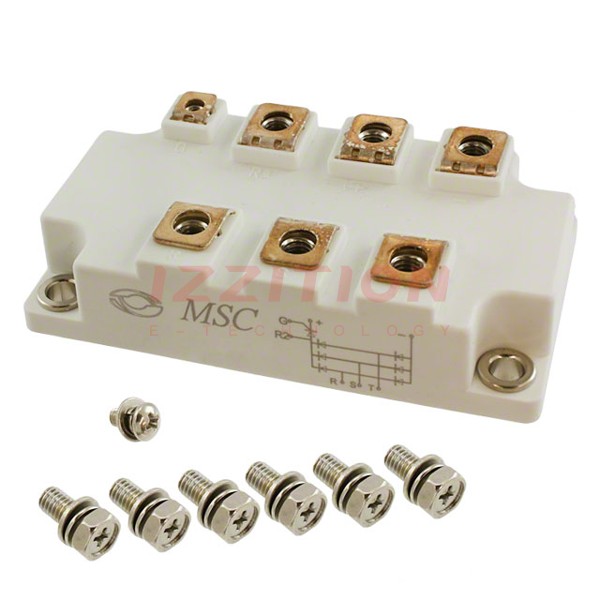

| Part Number | MSDT150-16 | MSDT100-16 |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete |
| Structure | Bridge, 3-Phase - SCRs/Diodes | Bridge, 3-Phase - SCRs/Diodes |
| Number of SCRs, Diodes | 1 SCR, 6 Diodes | 1 SCR, 6 Diodes |
| Voltage - Off State | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 150 A | 100 A |
| Current - On State (It (RMS)) (Max) | - | - |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V | 3 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A @ 50Hz | 1200A @ 50Hz |
| Current - Hold (Ih) (Max) | - | - |
| Operating Temperature | - | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | M5 Module | M4 Module |
