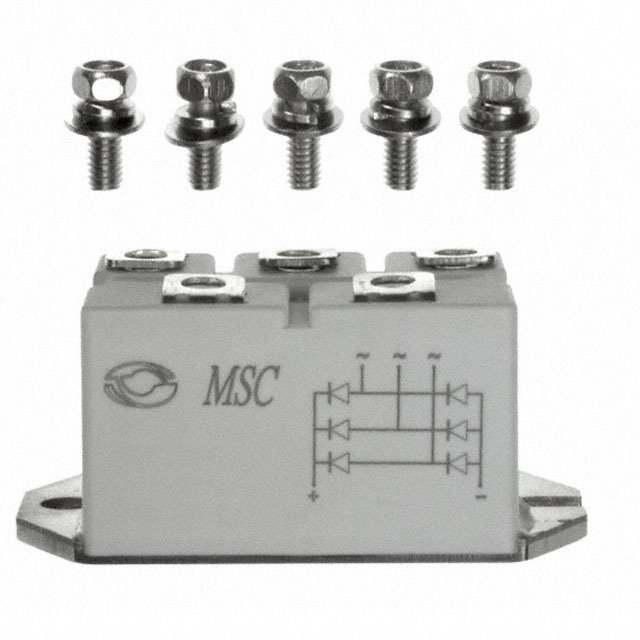

| Part Number | MSD75-16 | MSDM75-16 | MSD75-12 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Three Phase | Three Phase | Three Phase |
| Technology | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 1.6 kV | 1.6 kV | 1.2 kV |
| Current - Average Rectified (Io) | 75 A | 75 A | 75 A |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 150 A | 1.6 V @ 150 A | 1.6 V @ 150 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 1600 V | 500 µA @ 1600 V | 300 µA @ 1200 V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | M2 | Module | M2 |
| Supplier Device Package | SM2 | M2-1 | SM2 |
