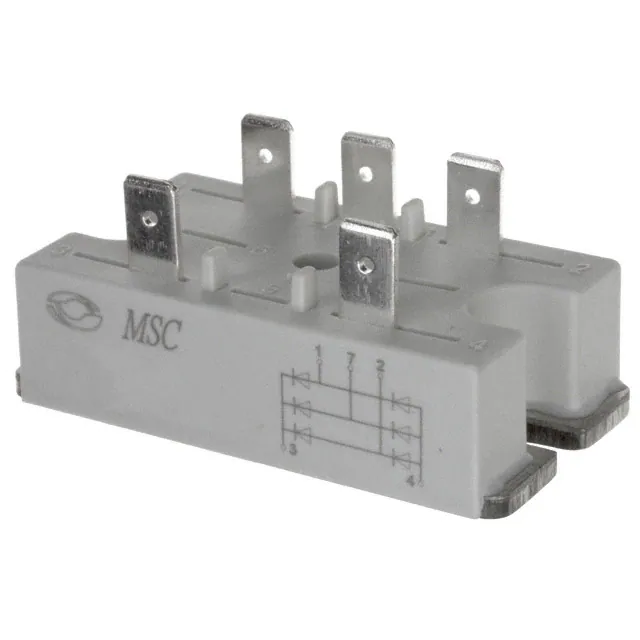

| Part Number | MSD50-08 | MSD52-08 | MSD30-08 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Three Phase | Three Phase | Three Phase |
| Technology | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 800 V | 800 V | 800 V |
| Current - Average Rectified (Io) | 50 A | 50 A | 30 A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 100 A | 1.8 V @ 150 A | 1.6 V @ 100 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 800 V | 300 µA @ 800 V | 200 µA @ 800 V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | QC Terminal | Chassis Mount | QC Terminal |
| Package / Case | M1 | M2 | M1 |
| Supplier Device Package | MSD | SM2 | MSD |
