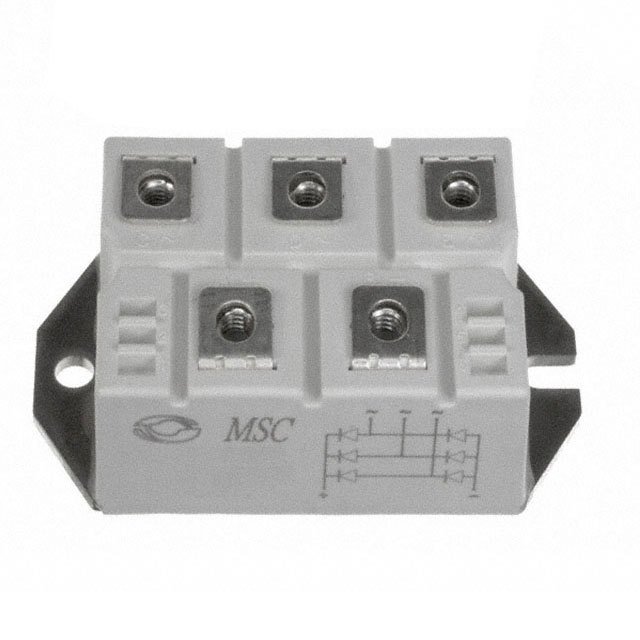

| Part Number | MSD200-12 | MSD200-16 | MSD100-12 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Three Phase | Three Phase | Three Phase |
| Technology | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 1.2 kV | 1.6 kV | 1.2 kV |
| Current - Average Rectified (Io) | 200 A | 200 A | 100 A |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 300 A | 1.55 V @ 300 A | 1.9 V @ 300 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 1200 V | 300 µA @ 1600 V | 300 µA @ 1200 V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | M3 | M3 | M3 |
| Supplier Device Package | M3 | M3 | M3 |
