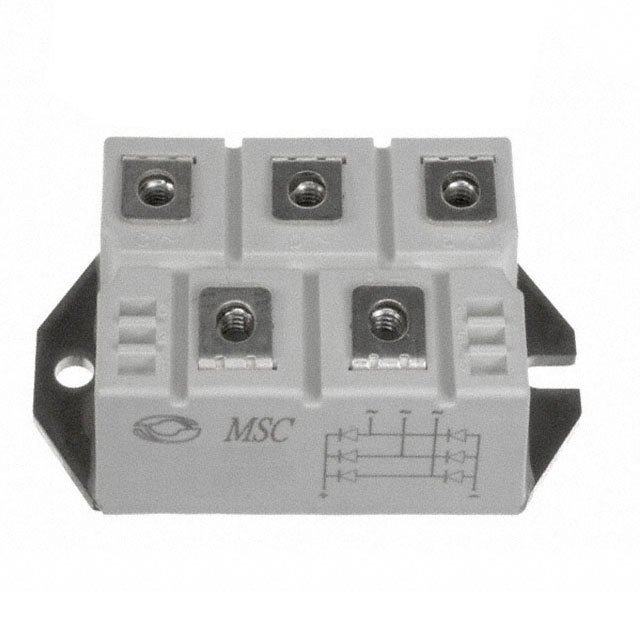

Microsemi Corporation-MSD100-16 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	MSD100-16	MSD160-16	MSD130-16	MSD200-16	MSDM100-16	MSD100-12
Manufacturer	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	1.6 kV	1.6 kV	1.6 kV	1.6 kV	1.6 kV	1.2 kV
Current - Average Rectified (Io)	100 A	160 A	130 A	200 A	100 A	100 A
Voltage - Forward (Vf) (Max) @ If	1.9 V @ 300 A	1.65 V @ 300 A	1.8 V @ 300 A	1.55 V @ 300 A	1.9 V @ 300 A	1.9 V @ 300 A
Current - Reverse Leakage @ Vr	300 µA @ 1600 V	500 µA @ 1600 V	300 µA @ 1600 V	300 µA @ 1600 V	500 µA @ 1600 V	300 µA @ 1200 V
Operating Temperature	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	M3	M3	M3	M3	Module	M3
Supplier Device Package	M3	M3	M3	M3	M2-1	M3

Microsemi Corporation MSD100-16

Diode Type:	Three Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	1.6 kV
Current - Average Rectified (Io):	100 A
Voltage - Forward (Vf) (Max) @ If:	1.9 V @ 300 A
Current - Reverse Leakage @ Vr:	300 µA @ 1600 V
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	M3
Supplier Device Package:	M3
