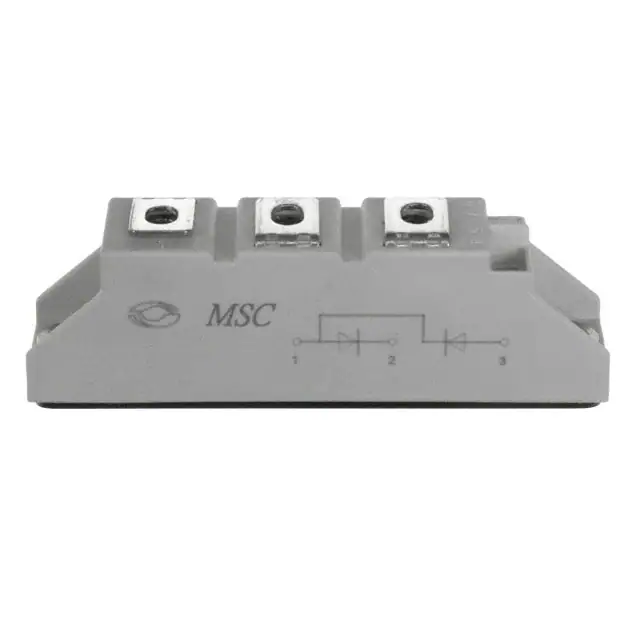

| Part Number | MSCD60-16 | MSCD70-16 | MSKD60-16 | MSCD60-12 |
|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Common Cathode | 1 Pair Series Connection |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1600 V | 1600 V | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 60A | 70A | 60A | 60A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 200 A | 1.48 V @ 200 A | 1.3 V @ 200 A | 1.3 V @ 200 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 5 mA @ 1600 V | 5 mA @ 1600 V | 5 mA @ 1600 V | 5 mA @ 1200 V |
| Operating Temperature - Junction | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | D1 | D1 | D1 | D1 |
| Supplier Device Package | D1 | D1 | D1 | D1 |
