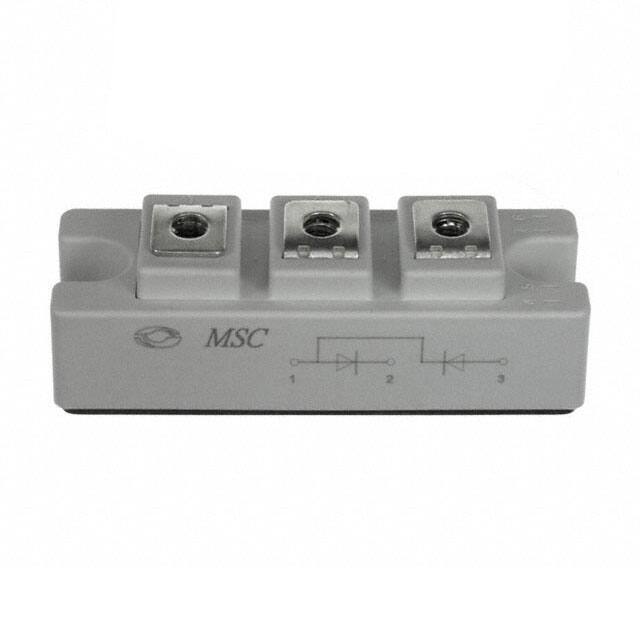

| Part Number | MSCD200-08 | MSKD200-08 | MSCD100-08 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Common Cathode | 1 Pair Series Connection |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 800 V | 800 V | 800 V |
| Current - Average Rectified (Io) (per Diode) | 200A | 200A | 100A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 300 A | 1.3 V @ 300 A | 1.35 V @ 300 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 9 mA @ 800 V | 9 mA @ 800 V | 5 mA @ 800 V |
| Operating Temperature - Junction | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | D2 | D2 | D1 |
| Supplier Device Package | SD2 | SD2 | D1 |
