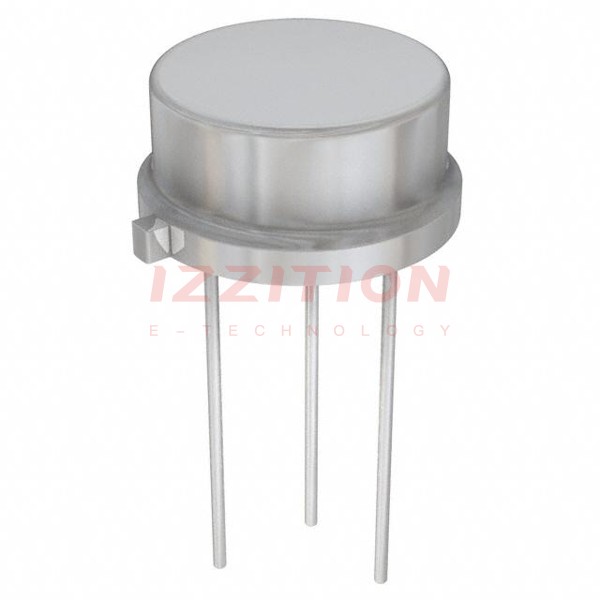

| Part Number | MRF586G | MRF581G | MRF586 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 17V | 18V | 17V |
| Frequency - Transition | 3GHz | 5GHz | 3GHz |
| Noise Figure (dB Typ @ f) | - | 3dB ~ 3.5dB @ 500MHz | - |
| Gain | 13.5dB | 13dB ~ 15.5dB | 13.5dB |
| Power - Max | 1W | 1.25W | 1W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 50mA, 5V | 50 @ 50mA, 5V | 40 @ 50mA, 5V |
| Current - Collector (Ic) (Max) | 200mA | 200mA | 200mA |
| Operating Temperature | - | 150°C (TJ) | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can | Micro-X ceramic (84C) | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 | Micro-X ceramic (84C) | TO-39 |
