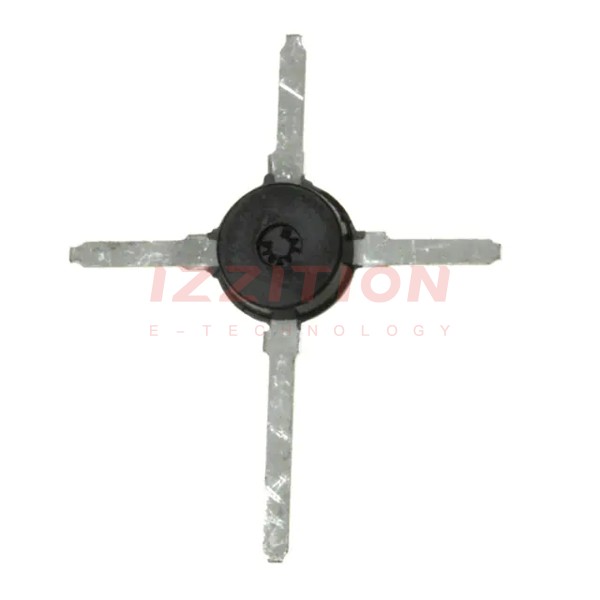

| Part Number | MRF553GT | MRF553T | MRF553G |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 16V | 16V | 16V |
| Frequency - Transition | 175MHz | 175MHz | 175MHz |
| Noise Figure (dB Typ @ f) | - | - | - |
| Gain | 11.5dB | 11.5dB | 11dB ~ 13dB |
| Power - Max | 3W | 3W | 3W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 250mA, 5V | 30 @ 250mA, 5V | 30 @ 250mA, 5V |
| Current - Collector (Ic) (Max) | 500mA | 500mA | 500mA |
| Operating Temperature | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Power Macro | Power Macro | Power Macro |
| Supplier Device Package | Power Macro | Power Macro | Power Macro |
