| Part Number | MRF517 | MRF587 | MRF317 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | MACOM Technology Solutions | MACOM Technology Solutions |
| Product Status | Obsolete | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 20V | 17V | 35V |
| Frequency - Transition | 4GHz | 5.5GHz | - |
| Noise Figure (dB Typ @ f) | - | 3dB @ 0.5GHz | - |
| Gain | 9dB ~ 10dB | 13dB | 10dB |
| Power - Max | 2.5W | - | 100W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 60mA, 10V | 50 @ 50mA, 5V | 10 @ 5A, 5V |
| Current - Collector (Ic) (Max) | 150mA | 200mA | 12A |
| Operating Temperature | - | 200°C (TJ) | - |
| Mounting Type | Through Hole | Stud Mount | Chassis Mount |

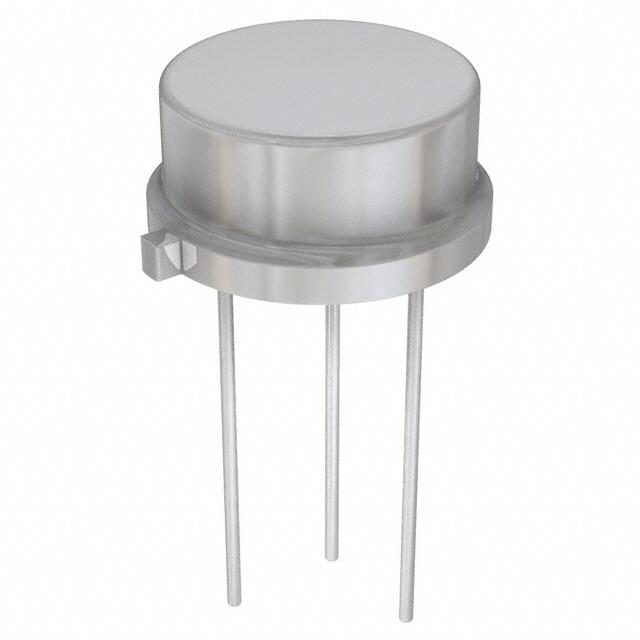

| Package / Case | TO-205AD, TO-39-3 Metal Can | 244A-01 | 316-01 |
| Supplier Device Package | TO-39 | 244A-01, STYLE 1 | 316-01, STYLE 1 |
