| Part Number | LX8586-33CV | LX8586A-33CV | LX8584-33CV | LX8586-33CP |
|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 10V | 10V | 10V | 10V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 1.3V @ 6A | 1.1V @ 6A | 1.4V @ 7A | 1.3V @ 6A |
| Current - Output | 6A | 6A | 7A | 6A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 83dB (120Hz) | 83dB (120Hz) | 83dB (120Hz) | 83dB (120Hz) |
| Control Features | - | - | - | - |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

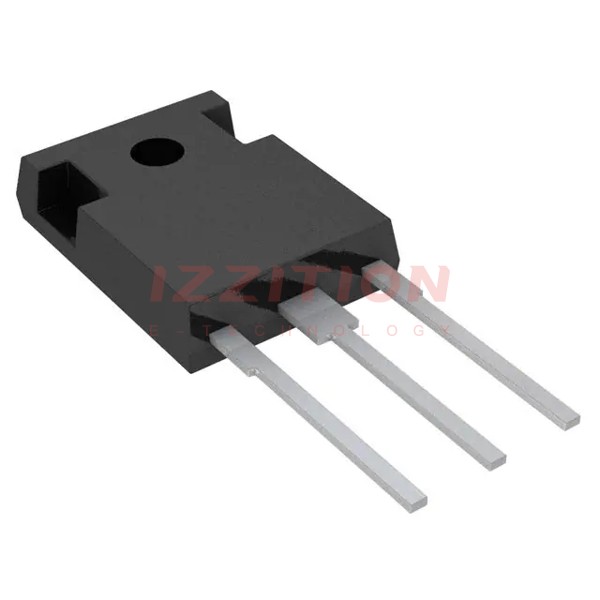

| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-220-3 |
| Supplier Device Package | TO-247-3 | TO-247-3 | TO-247-3 | TO-220, Power |
