Please send RFQ , we will respond immediately.
| Part Number | LX8383A-33CV | LX8383A-33IV | LX8383B-33CV | LX8382A-33CV | LX8383-33CV |
|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 10V | 10V | 10V | 10V | 10V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 1.3V @ 7.5A | 1.3V @ 7.5A | 1.3V @ 7.5A | 1.2V @ 10A | 1.5V @ 7.5A |
| Current - Output | 7.5A | 7.5A | 7.5A | 10A | 7.5A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 83dB (120Hz) | 83dB (120Hz) | 83dB (120Hz) | - | 83dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C | -25°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

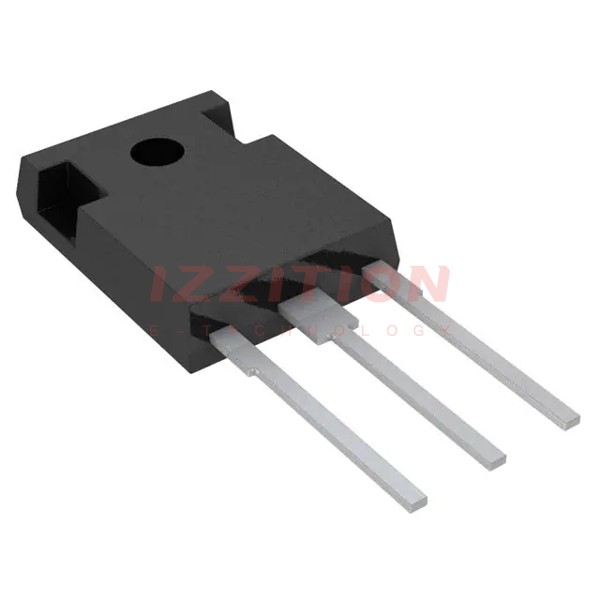

| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
