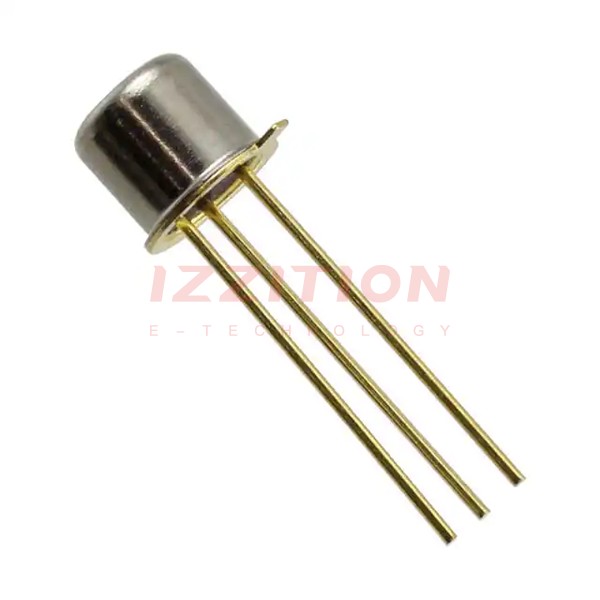

| Part Number | JANTXV2N4957 | JANTX2N4957 |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation |
| Product Status | Discontinued at Digi-Key | Active |
| Transistor Type | PNP | PNP |
| Voltage - Collector Emitter Breakdown (Max) | 30V | 30V |
| Frequency - Transition | - | - |
| Noise Figure (dB Typ @ f) | 3.5dB @ 450MHz | 3.5dB @ 450MHz |
| Gain | 25dB | 25dB |
| Power - Max | 200mW | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 10V | 30 @ 5mA, 10V |
| Current - Collector (Ic) (Max) | 30mA | 30mA |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-72-3 Metal Can | TO-72-3 Metal Can |
| Supplier Device Package | TO-72 | TO-72 |
