Please send RFQ , we will respond immediately.

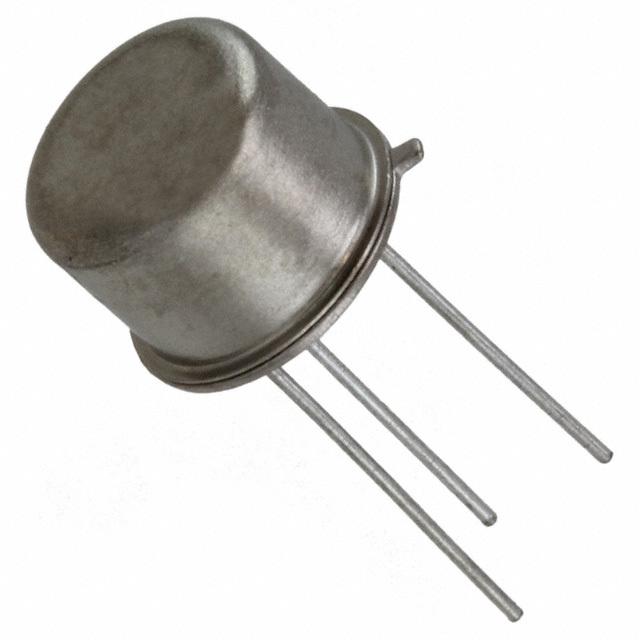

| Part Number | JANTXV2N3735 | JANTXV2N3735L | JANTXV2N3737 | JANTXV2N335 | JANTXV2N3725 |
|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key | Active | Active |
| Transistor Type | NPN | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 1.5 A | 1.5 A | 1.5 A | - | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 40 V | 40 V | 45 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 900mV @ 100mA, 1A | 900mV @ 100mA, 1A | 900mV @ 100mA, 1A | - | - |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 10µA (ICBO) | 10µA (ICBO) | - | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 1A, 1.5V | 20 @ 1A, 1.5V | 20 @ 1A, 1.5V | - | - |
| Power - Max | 1 W | 1 W | 500 mW | - | - |
| Frequency - Transition | - | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | 175°C (TJ) | 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-206AB, TO-46-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 | TO-5 | TO-46-3 | TO-5 | TO-39 (TO-205AD) |
