JANTXV2N2329AS
  • Share:

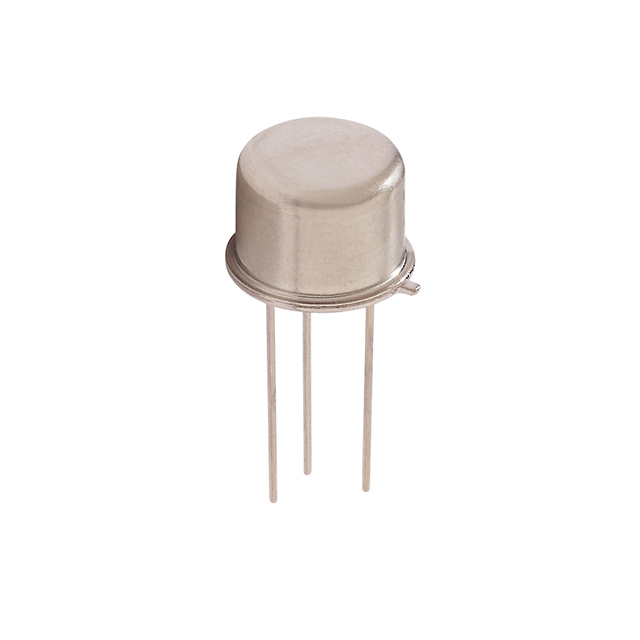

Microsemi Corporation JANTXV2N2329AS

Manufacturer No:
JANTXV2N2329AS
Manufacturer:
Microsemi Corporation
Package:
Bulk
Datasheet:
JANTXV2N2329AS Datasheet
ECAD Model:
-
Description:
SCR 400V TO39
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Voltage - Off State:400 V
Voltage - Gate Trigger (Vgt) (Max):600 mV
Current - Gate Trigger (Igt) (Max):20 µA
Voltage - On State (Vtm) (Max):-
Current - On State (It (AV)) (Max):220 mA
Current - On State (It (RMS)) (Max):-
Current - Hold (Ih) (Max):2 mA
Current - Off State (Max):-
Current - Non Rep. Surge 50, 60Hz (Itsm):-
SCR Type:Sensitive Gate
Operating Temperature:-65°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-205AD, TO-39-3 Metal Can
Supplier Device Package:TO-39 (TO-205AD)
0 Remaining View Similar

In Stock

-
589

Please send RFQ , we will respond immediately.

Similar Products

Part Number JANTXV2N2329AS JANTX2N2329AS   JANTXV2N2329A
Manufacturer Microsemi Corporation Microchip Technology Microsemi Corporation
Product Status Obsolete Obsolete Obsolete
Voltage - Off State 400 V 400 V 400 V
Voltage - Gate Trigger (Vgt) (Max) 600 mV 600 mV 600 mV
Current - Gate Trigger (Igt) (Max) 20 µA 20 µA 20 µA
Voltage - On State (Vtm) (Max) - - -
Current - On State (It (AV)) (Max) 220 mA 220 mA 220 mA
Current - On State (It (RMS)) (Max) - - -
Current - Hold (Ih) (Max) 2 mA 2 mA 2 mA
Current - Off State (Max) - - -
Current - Non Rep. Surge 50, 60Hz (Itsm) - - -
SCR Type Sensitive Gate Sensitive Gate Sensitive Gate
Operating Temperature -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C
Mounting Type Through Hole Through Hole Through Hole
Package / Case TO-205AD, TO-39-3 Metal Can TO-205AD, TO-39-3 Metal Can TO-205AA, TO-5-3 Metal Can
Supplier Device Package TO-39 (TO-205AD) TO-39 (TO-205AD) TO-5
