Microsemi Corporation-JANTXV2N2221A - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	JANTXV2N2221A	JANTXV2N2222A	JANTXV2N2221AL
Manufacturer	Microsemi Corporation	Microchip Technology	Microsemi Corporation
Product Status	Active	Active	Active
Transistor Type	NPN	NPN	NPN
Current - Collector (Ic) (Max)	800 mA	800 mA	800 mA
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V	50 V
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA	1V @ 50mA, 500mA	1V @ 50mA, 500mA
Current - Collector Cutoff (Max)	50nA	50nA	50nA
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 150mA, 10V	100 @ 150mA, 10V	40 @ 150mA, 10V
Power - Max	500 mW	500 mW	500 mW
Frequency - Transition	-	-	-
Operating Temperature	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole
Package / Case	TO-206AA, TO-18-3 Metal Can	TO-206AA, TO-18-3 Metal Can	TO-206AA, TO-18-3 Metal Can
Supplier Device Package	TO-18 (TO-206AA)	TO-18 (TO-206AA)	TO-18 (TO-206AA)

Transistor Type:	NPN
Current - Collector (Ic) (Max):	800 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 50mA, 500mA
Current - Collector Cutoff (Max):	50nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	40 @ 150mA, 10V
Power - Max:	500 mW
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-206AA, TO-18-3 Metal Can
Supplier Device Package:	TO-18 (TO-206AA)

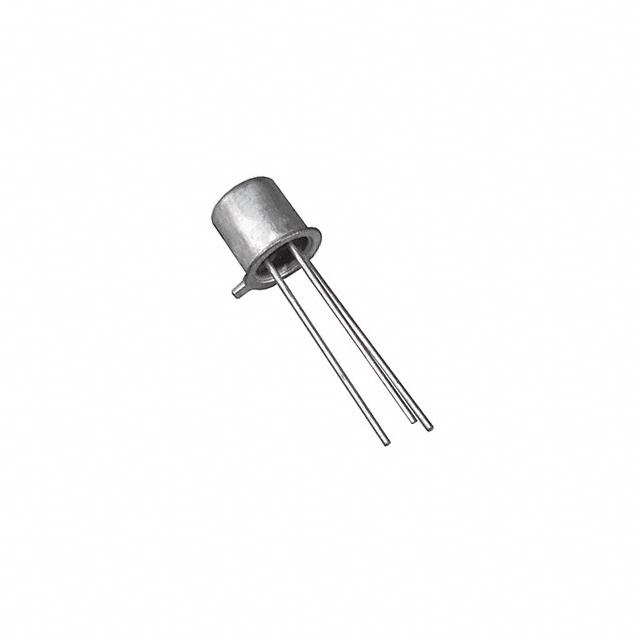

Microsemi Corporation JANTXV2N2221A
