| Part Number | JANTX2N2857 | JANTXV2N2857 |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 15V | 15V |
| Frequency - Transition | 500MHz | 500MHz |
| Noise Figure (dB Typ @ f) | 4.5dB @ 450MHz | 4.5dB @ 450MHz |
| Gain | 12.5dB ~ 21dB @ 450MHz | 12.5dB ~ 21dB @ 450MHz |
| Power - Max | 200mW | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 3mA, 1V | 30 @ 3mA, 1V |
| Current - Collector (Ic) (Max) | 40mA | 40mA |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

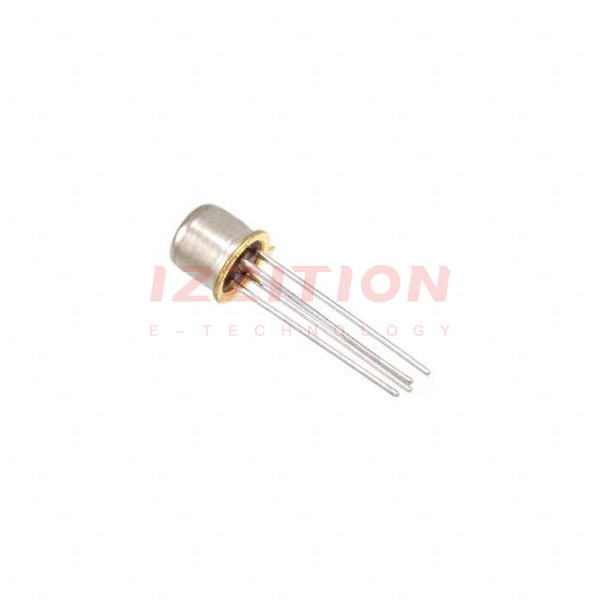

| Package / Case | TO-72-3 Metal Can | TO-72-3 Metal Can |
| Supplier Device Package | TO-72 | TO-72 |
