Please send RFQ , we will respond immediately.

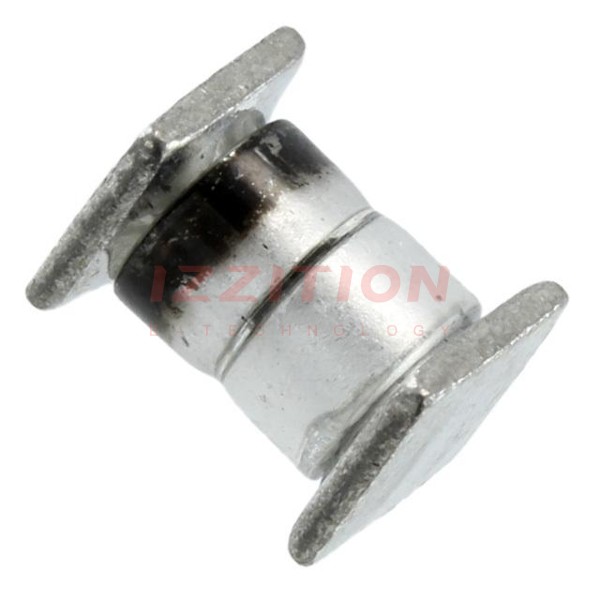

| Part Number | JANTX1N4962CUS | JANTX1N4962US | JANTX1N4963CUS | JANTX1N4964CUS | JANTX1N4965CUS | JANTX1N4966CUS | JANTX1N4967CUS | JANTX1N4969CUS | JANTX1N4972CUS | JANTX1N4982CUS | JANTX1N4962DUS | JANTX1N4968CUS | JANTX1N4960CUS | JANTX1N4961CUS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microchip Technology | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microchip Technology | Microsemi Corporation | Microchip Technology | Microsemi Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 15 V | 15 V | 16 V | 18 V | 20 V | 22 V | 24 V | 30 V | 39 V | 100 V | 15 V | 27 V | 12 V | 13 V |
| Tolerance | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±2% | ±2% | ±2% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 3.5 Ohms | 3.5 Ohms | 3.5 Ohms | 4 Ohms | 4.5 Ohms | 5 Ohms | 5 Ohms | 8 Ohms | 14 Ohms | 110 Ohms | 3.5 Ohms | 6 Ohms | 2.5 Ohms | 3 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 11.4 V | 5 µA @ 11.4 V | 5 µA @ 12.2 V | 5 µA @ 13.7 V | 2 µA @ 15.2 V | 2 µA @ 16.7 V | 2 µA @ 18.2 V | 2 µA @ 22.8 V | 2 µA @ 29.7 V | 2 µA @ 76 V | 5 µA @ 11.4 V | 2 µA @ 20.6 V | 10 µA @ 9.1 V | 10 µA @ 9.9 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF |
| Supplier Device Package | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B |
