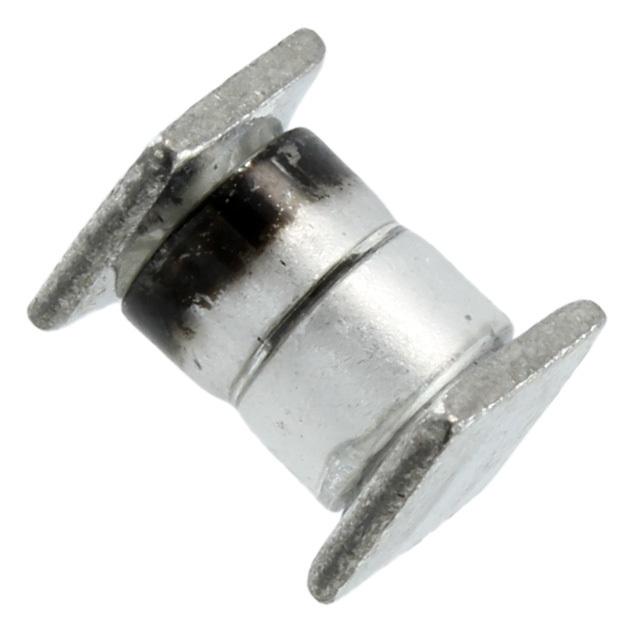

Microsemi Corporation-JANTX1N4956DUS - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	JANTX1N4956DUS	JANTX1N4956US	JANTX1N4957DUS	JANTX1N4958DUS	JANTX1N4959DUS	JANTX1N4966DUS	JANTX1N4954DUS	JANTX1N4955DUS	JANTX1N4956CUS
Manufacturer	Microsemi Corporation	Microchip Technology	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microchip Technology	Microsemi Corporation	Microsemi Corporation
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	8.2 V	8.2 V	9.1 V	10 V	11 V	22 V	6.8 V	7.5 V	8.2 V
Tolerance	±1%	±5%	±1%	±1%	±1%	±1%	±5%	±1%	±2%
Power - Max	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Impedance (Max) (Zzt)	1.5 Ohms	1.5 Ohms	2 Ohms	2 Ohms	2.5 Ohms	5 Ohms	1 Ohms	1.5 Ohms	1.5 Ohms
Current - Reverse Leakage @ Vr	50 µA @ 6.2 V	50 µA @ 6.2 V	25 µA @ 6.9 V	25 µA @ 7.6 V	10 µA @ 8.4 V	2 µA @ 16.7 V	150 µA @ 5.2 V	100 µA @ 5.7 V	50 µA @ 6.2 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A	1.5 V @ 1 A
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF	E-MELF
Supplier Device Package	D-5B	D-5B	D-5B	D-5B	D-5B	D-5B	D-5B	D-5B	D-5B

Microsemi Corporation JANTX1N4956DUS
