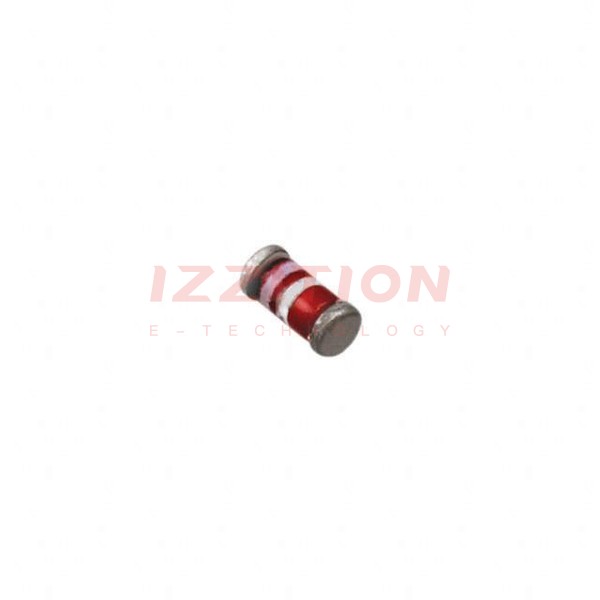

| Part Number | JANTX1N4614DUR-1 | JANTX1N4614UR-1 | JANTX1N4616DUR-1 | JANTX1N4618DUR-1 | JANTX1N4615DUR-1 | JANTX1N4617DUR-1 | JANTX1N4619DUR-1 | JANTX1N4614CUR-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microsemi Corporation |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Obsolete |
| Voltage - Zener (Nom) (Vz) | 1.8 V | 1.8 V | 2.2 V | 2.7 V | 2 V | 2.4 V | 3 V | 1.8 V |
| Tolerance | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 1.2 kOhms | 1.2 kOhms | 1.3 kOhms | 1.5 kOhms | 1.25 kOhms | 1.4 kOhms | 1.6 kOhms | 1.2 kOhms |
| Current - Reverse Leakage @ Vr | 3.5 µA @ 1 V | 3.5 µA @ 1 V | 2 µA @ 1 V | 500 nA @ 1 V | 2.5 µA @ 1 V | 1 µA @ 1 V | 400 nA @ 1 V | 3.5 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | - | 1.1 V @ 200 mA | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
