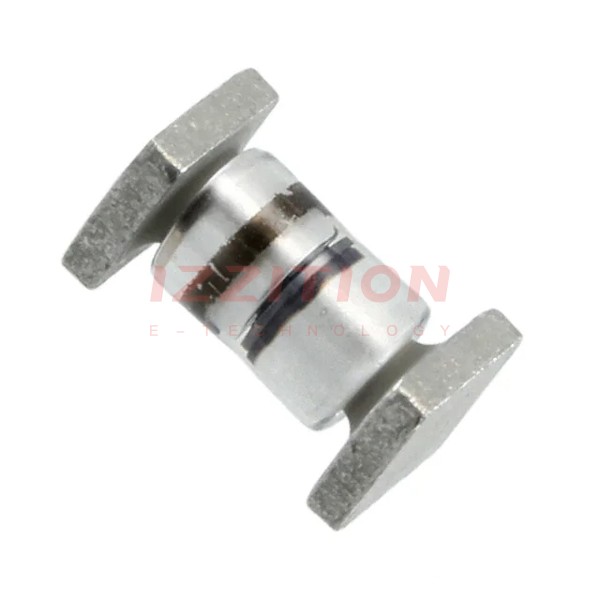

Microsemi Corporation-JANTX1N4482DUS - Diodes - Zener - Single Product Specifications and Latest Quotes | Izzition

Similar Products

Part Number	JANTX1N4482DUS	JANTX1N4482US	JANTX1N4483DUS	JANTX1N4484DUS	JANTX1N4485DUS	JANTX1N4486DUS	JANTX1N4487DUS	JANTX1N4488DUS	JANTX1N4489DUS	JANTX1N4492DUS	JANTX1N4472DUS	JANTX1N4480DUS	JANTX1N4481DUS	JANTX1N4482CUS
Manufacturer	Microsemi Corporation	Semtech Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microchip Technology	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation
Product Status	Active	Discontinued at Digi-Key	Active	Active	Active	Active	Active	Active	Active	Active	Discontinued at Digi-Key	Active	Active	Active
Voltage - Zener (Nom) (Vz)	51 V	51 V	56 V	62 V	68 V	75 V	82 V	91 V	100 V	130 V	20 V	43 V	47 V	51 V
Tolerance	±1%	±4.9%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±2%
Power - Max	1.5 W	-	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W
Impedance (Max) (Zzt)	60 Ohms	60 Ohms	70 Ohms	80 Ohms	100 Ohms	130 Ohms	160 Ohms	200 Ohms	250 Ohms	500 Ohms	12 Ohms	40 Ohms	50 Ohms	60 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 40.8 V	50 nA @ 40.8 V	250 nA @ 44.8 V	250 nA @ 49.6 V	250 nA @ 54.4 V	250 nA @ 60 V	250 nA @ 65.6 V	250 nA @ 72.8 V	250 nA @ 80 V	250 nA @ 104 V	50 nA @ 16 V	50 nA @ 34.4 V	50 nA @ 37.6 V	50 nA @ 40.8 V
Voltage - Forward (Vf) (Max) @ If	1 V @ 200 mA	-	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA	1 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-55°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SQ-MELF, A	SQ-MELF	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A	SQ-MELF, A
Supplier Device Package	D-5A	-	D-5A	D-5A	D-5A	D-5A	D-5A	D-5A	D-5A	D-5A	D-5A	D-5A	D-5A	D-5A
