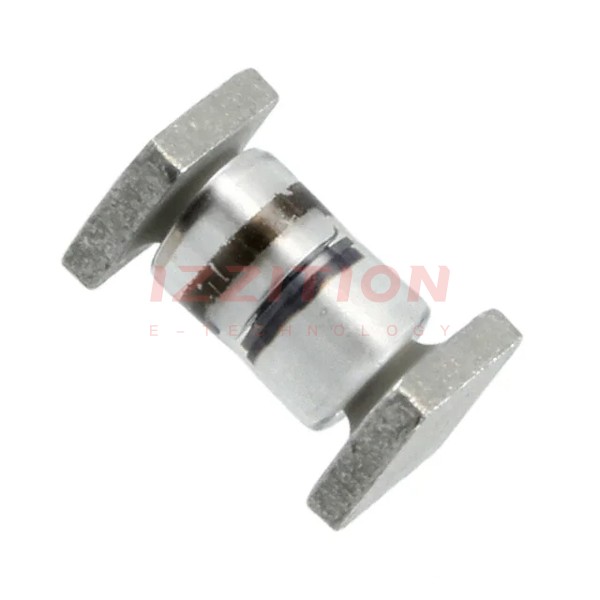

| Part Number | JANTX1N4470CUS | JANTX1N4471CUS | JANTX1N4472CUS | JANTX1N4473CUS | JANTX1N4474CUS | JANTX1N4475CUS | JANTX1N4476CUS | JANTX1N4477CUS | JANTX1N4478CUS | JANTX1N4479CUS | JANTX1N4480CUS | JANTX1N4470DUS | JANTX1N4460CUS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 16 V | 18 V | 20 V | 22 V | 24 V | 27 V | 30 V | 33 V | 36 V | 39 V | 43 V | 16 V | 6.2 V |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±2% |
| Power - Max | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W |
| Impedance (Max) (Zzt) | 10 Ohms | 11 Ohms | 12 Ohms | 14 Ohms | 16 Ohms | 18 Ohms | 20 Ohms | 25 Ohms | 27 Ohms | 30 Ohms | 40 Ohms | 10 Ohms | 4 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 12.8 V | 50 nA @ 14.4 V | 50 nA @ 16 V | 50 nA @ 17.6 V | 50 nA @ 19.2 V | 50 nA @ 21.6 V | 50 nA @ 24 V | 50 nA @ 26.4 V | 50 nA @ 28.8 V | 50 nA @ 31.2 V | 50 nA @ 34.4 V | 50 nA @ 12.8 V | 10 µA @ 3.72 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA | 1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A |
| Supplier Device Package | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A |
