Please send RFQ , we will respond immediately.

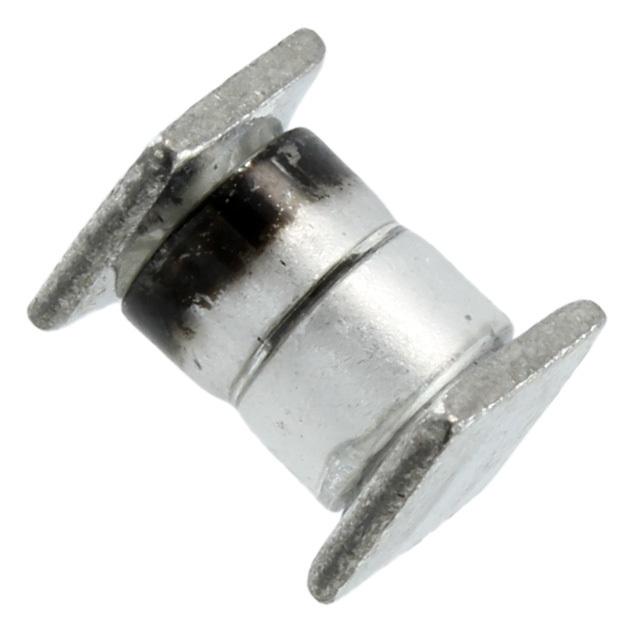

| Part Number | JAN1N6629US | JAN1N6620US | JAN1N6621US | JAN1N6622US | JAN1N6623US | JAN1N6624US | JAN1N6625US | JAN1N6627US | JAN1N6628US |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 880 V | 220 V | 75 V | 660 V | 880 V | 990 V | 1100 V | 440 V | 660 V |
| Current - Average Rectified (Io) | 1.4A | 2A | 200mA | 1.2A | 1A | 1A | 1A | 1.75A | 1.75A |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1.4 A | 1.6 V @ 2 A | 1.2 V @ 100 mA | 1.4 V @ 1.2 A | 1.55 V @ 1 A | 1.55 V @ 1 A | 1.75 V @ 1 A | 1.35 V @ 1.2 A | 1.35 V @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 30 ns | 20 ns | 30 ns | 50 ns | 50 ns | 60 ns | 30 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 880 V | 500 nA @ 220 V | 500 nA @ 75 V | 500 nA @ 660 V | 500 nA @ 880 V | 500 nA @ 990 V | 1 µA @ 1100 V | 2 µA @ 440 V | 2 µA @ 660 V |
| Capacitance @ Vr, F | 40pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | 2.8pF @ 1.5V, 1MHz | 10pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | 10pF @ 10V, 1MHz | 40pF @ 10V, 1MHz | 40pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E-MELF | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, E | E-MELF |
| Supplier Device Package | D-5B | D-5A | D-5A | D-5A | D-5A | D-5A | D-5A | D-5B | D-5B |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 200°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
